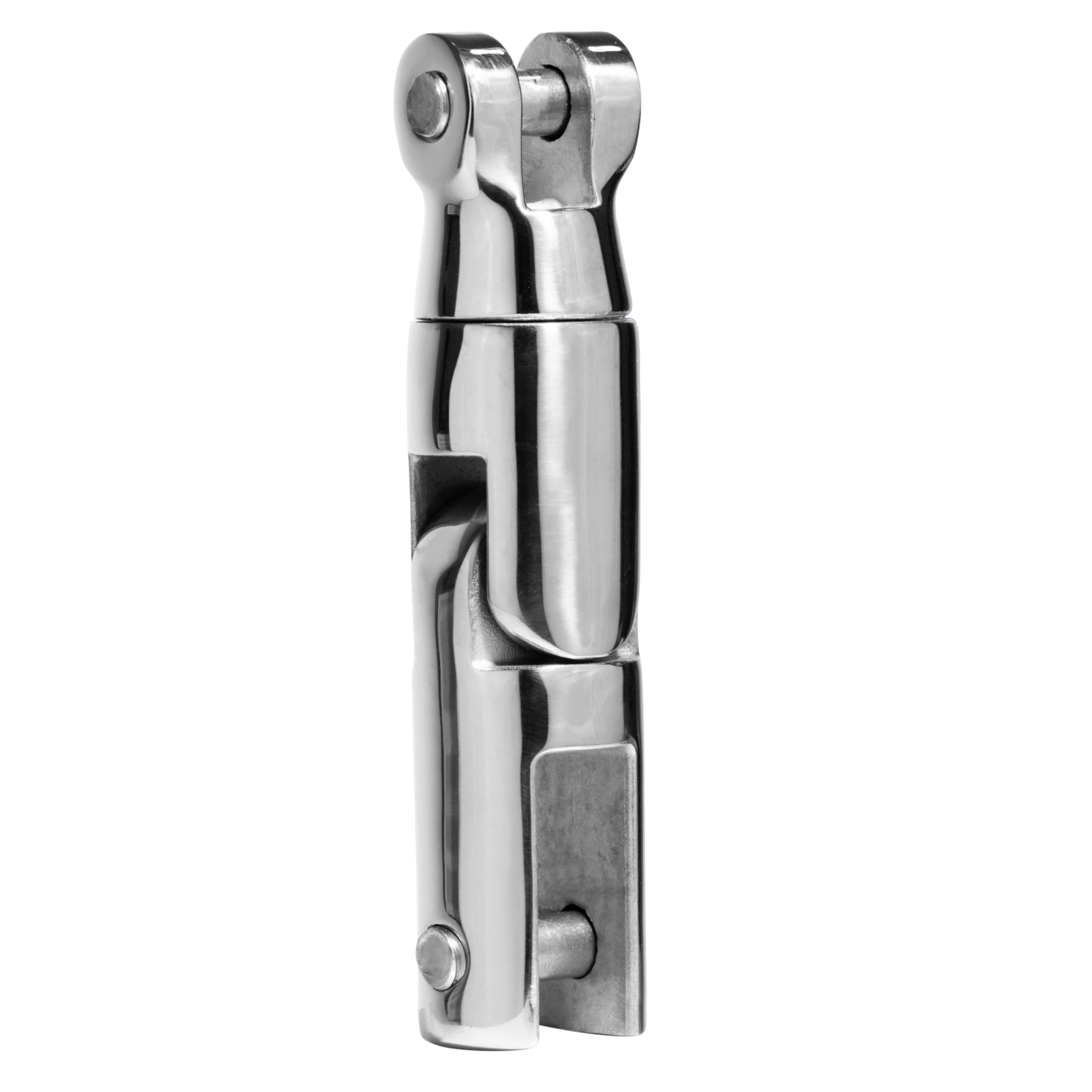

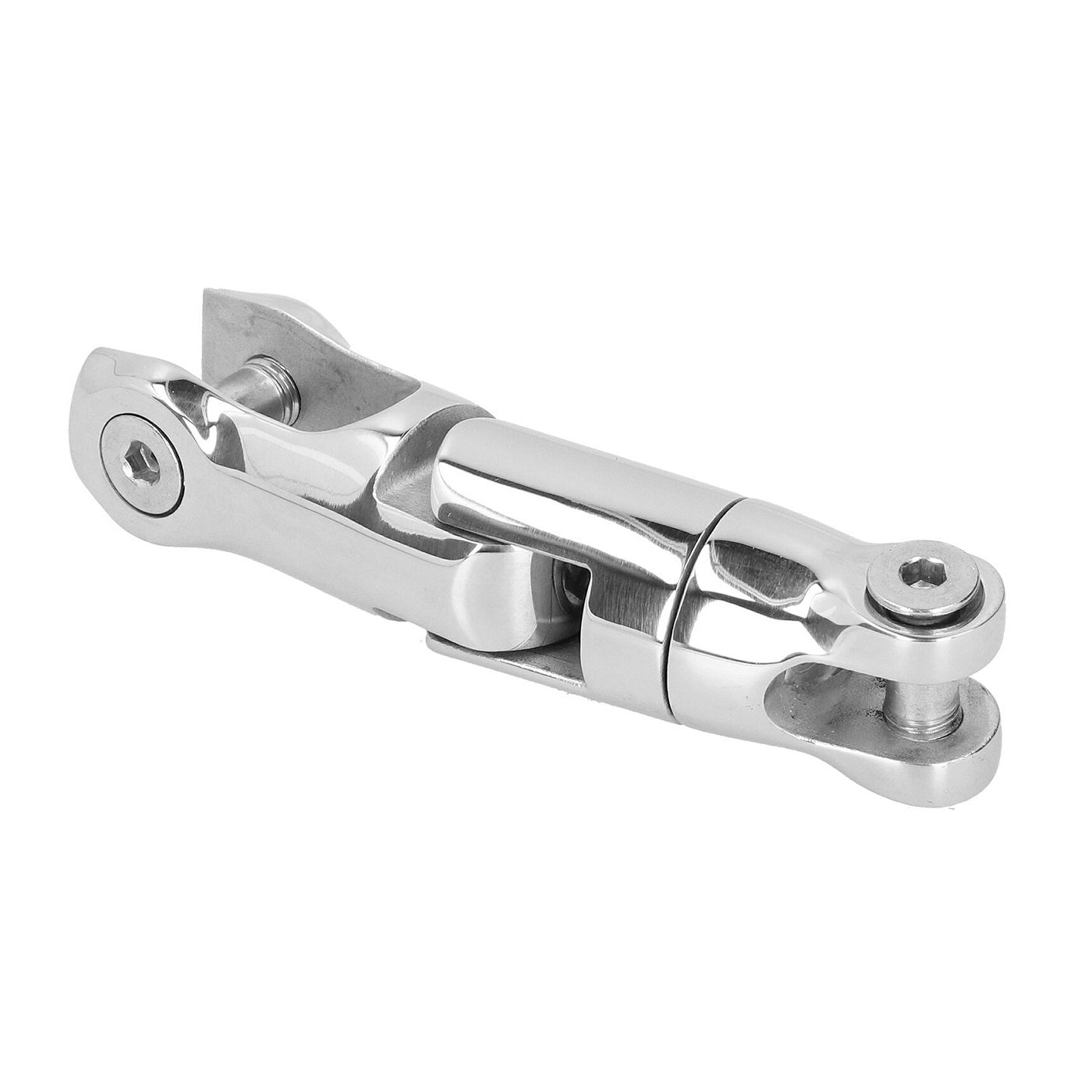

Anchor Swivel Connector
وصف
Marine Anchor Swivel Connector.
AISI 316 Marine Grade Stainless Steel.
Suits Link Chain Size 6 mm - 8 mm, 8 mm - 10 mm.

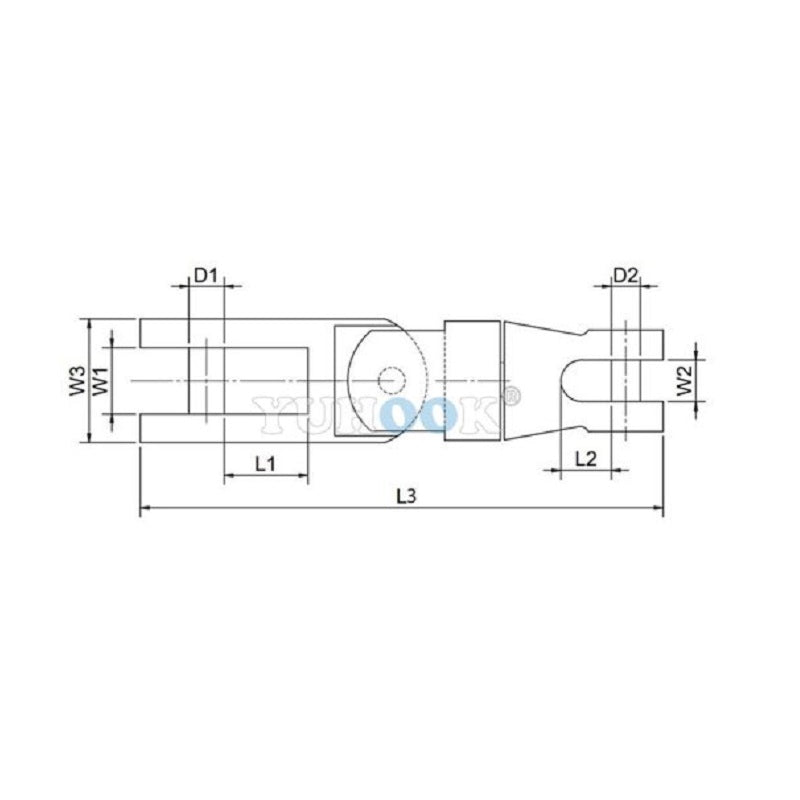

| L1 mm |
L2 mm |
L3 mm | W1 mm | W2 mm | W3 mm | D1 mm | D2 mm | Chain Size mm |
| 20.90 | 9.40 | 118.00 | 14.50 | 10.00 | 26.70 | 8.90 | 7.00 | 6-8 |
| 26.70 | 11.60 | 165.00 | 17.80 | 13.10 | 37.70 | 10.60 | 10.70 | 8-10 |
Anchor Swivel Connector
سعر البيع11.000 KD
