Grated Water Intake
وصف

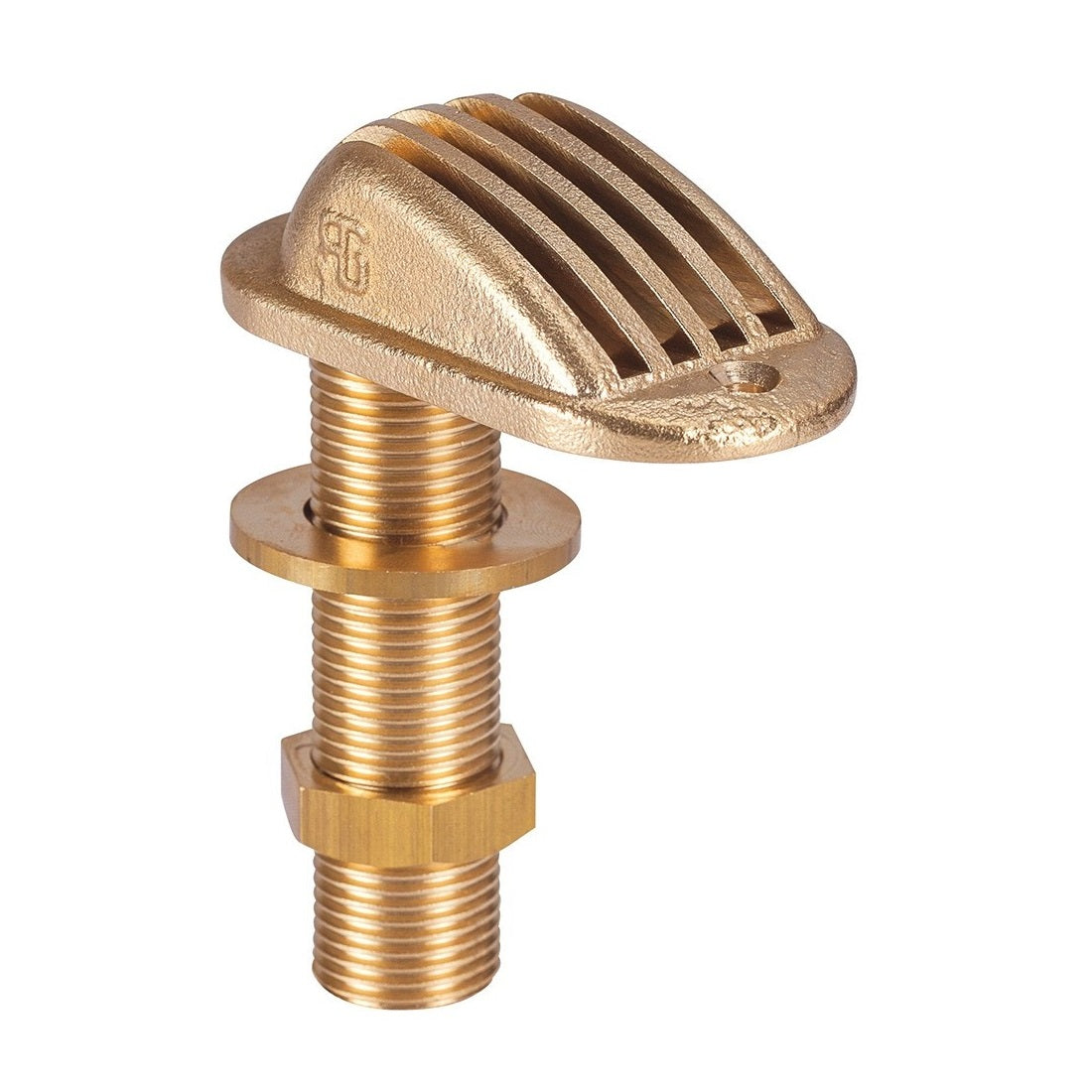

Guidi brass water inlet with integral scoop and slotted strainer. Install facing forward as this scoop is designed to increase water flow whilst the grating prevents unwanted debris entering the water intake.

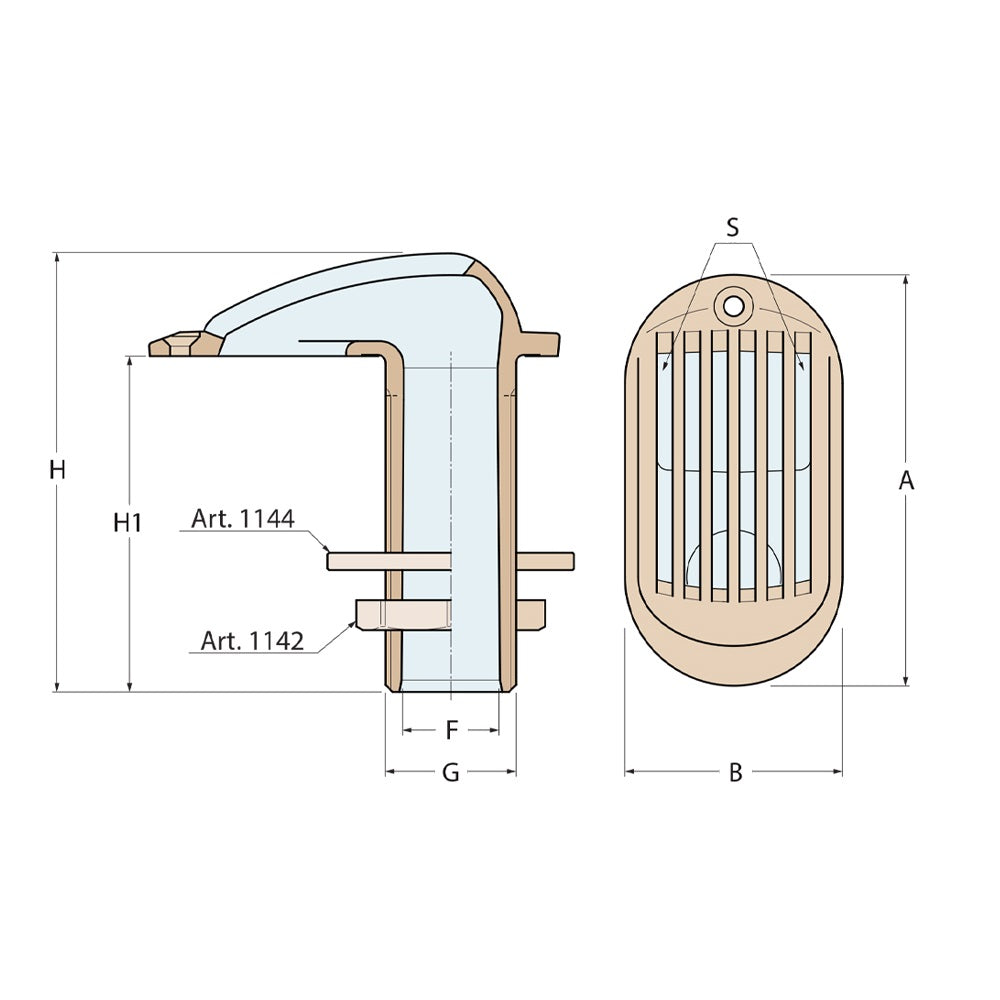

| Size G | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| S (cm²) | 7 | 10.6 | 15 | 21 | 25.5 | 37 |
| H | 103 | 104 | 111 | 118 | 129 | 142 |
| HI | 80 | 80 | 85 | 90 | 100 | 110 |
| F | 15 | 19 | 25 | 33 | 38.5 | 49.5 |
| A | 81 | 93 | 104 | 118 | 130 | 154 |
| B | 40 | 47 | 55 | 64 | 71 | 84 |
Grated Water Intake
سعر البيع6.000 KD
