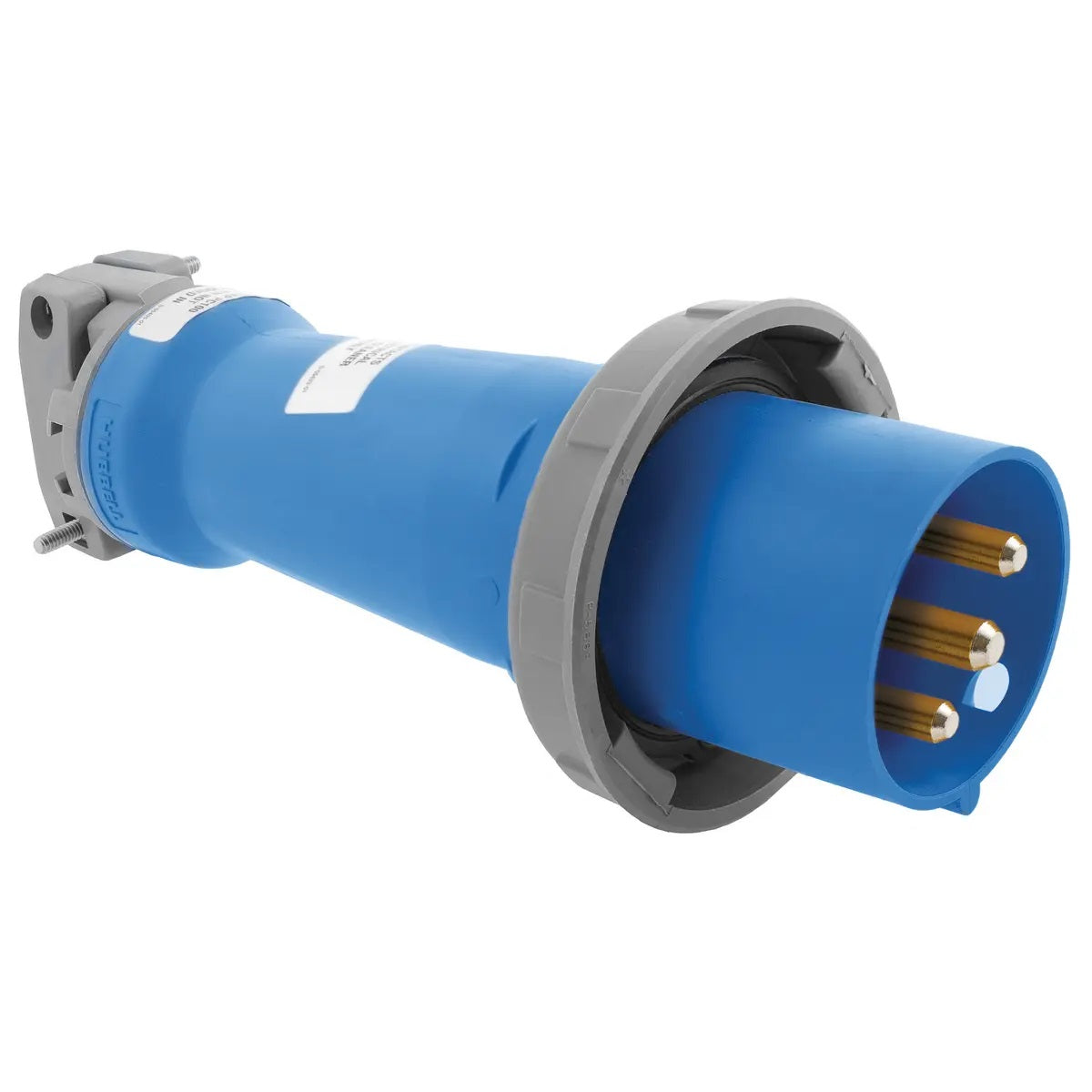

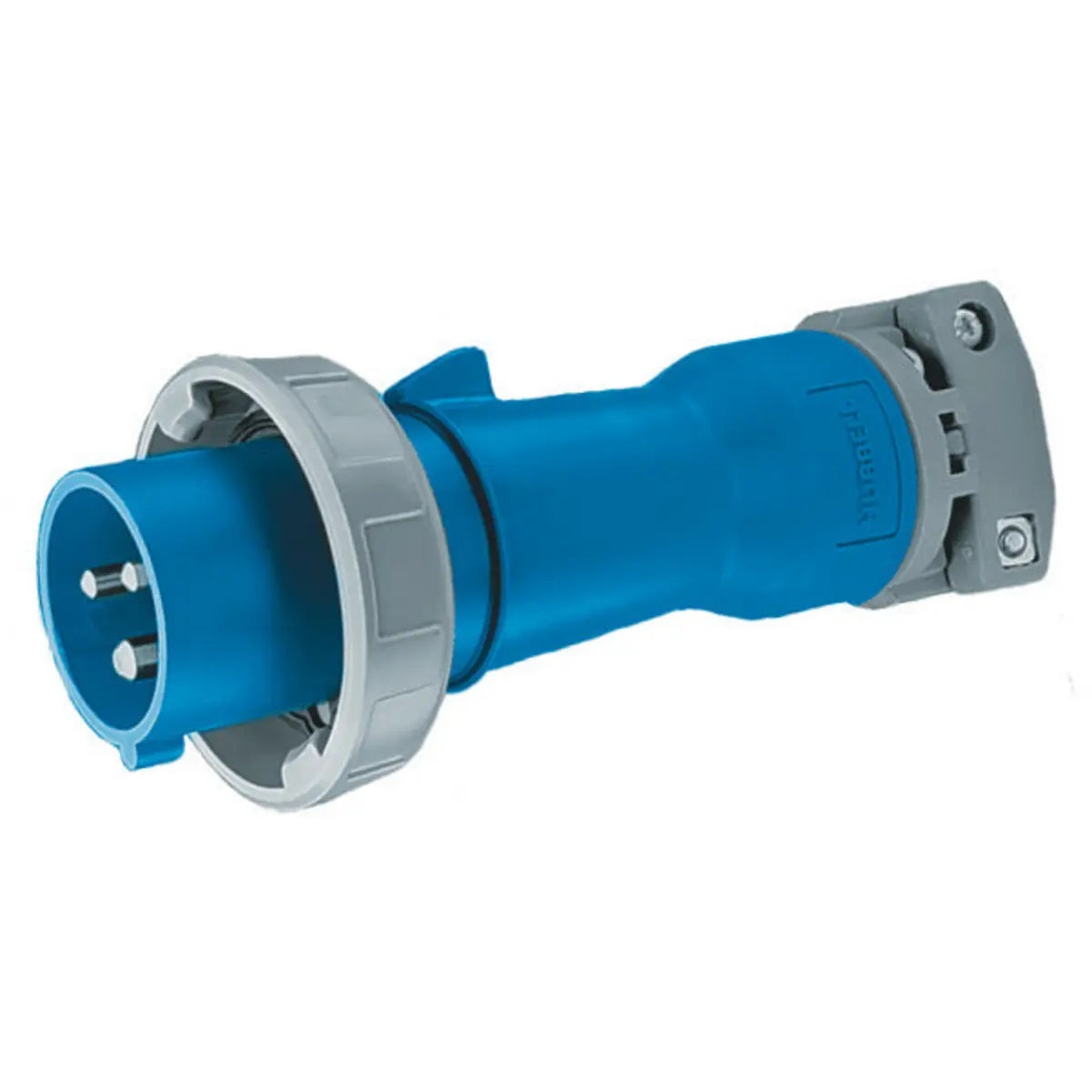

IEC Pin and Sleeve Male Plug, 16A Watertight
وصف
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Plug.
Solid one-piece pins machined from solid brass.
Gasketed sealing ring provides watertight seal.
Raised collar surrounds each phase pin.
Electrical - Current Interrupting - Certified for current interrupting at full rated current.
Electrical - Dielectric Voltage - 3000V AC.
Electrical - Max. Working Voltage - 600V RMS.
Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17.
Environmental - Ingress Protection - IP67 Suitability.
Environmental - Moisture Resistance - Watertight per IEC 60309-1.
Environmental - Operating Temperatures - Maximum Continuous 75°C.
Minimum - 40°C w/o impact.
Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682.
Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.
Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions.
Pressure Terminal Screws
Current / Amperage Rating : 16 A
Voltage Rating : 220-240 VAC
Voltage Rating Description : 220-240 VAC
Number Of Poles : 2-Pole
Number Of Wires : 3-Wire
Solid one-piece pins machined from solid brass.
Gasketed sealing ring provides watertight seal.
Raised collar surrounds each phase pin.
Electrical - Current Interrupting - Certified for current interrupting at full rated current.
Electrical - Dielectric Voltage - 3000V AC.
Electrical - Max. Working Voltage - 600V RMS.
Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17.
Environmental - Ingress Protection - IP67 Suitability.
Environmental - Moisture Resistance - Watertight per IEC 60309-1.
Environmental - Operating Temperatures - Maximum Continuous 75°C.
Minimum - 40°C w/o impact.
Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682.
Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing.
Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions.
Pressure Terminal Screws
Current / Amperage Rating : 16 A
Voltage Rating : 220-240 VAC
Voltage Rating Description : 220-240 VAC
Number Of Poles : 2-Pole
Number Of Wires : 3-Wire

IEC Pin and Sleeve Male Plug, 16A Watertight
سعر البيع19.750 KD
