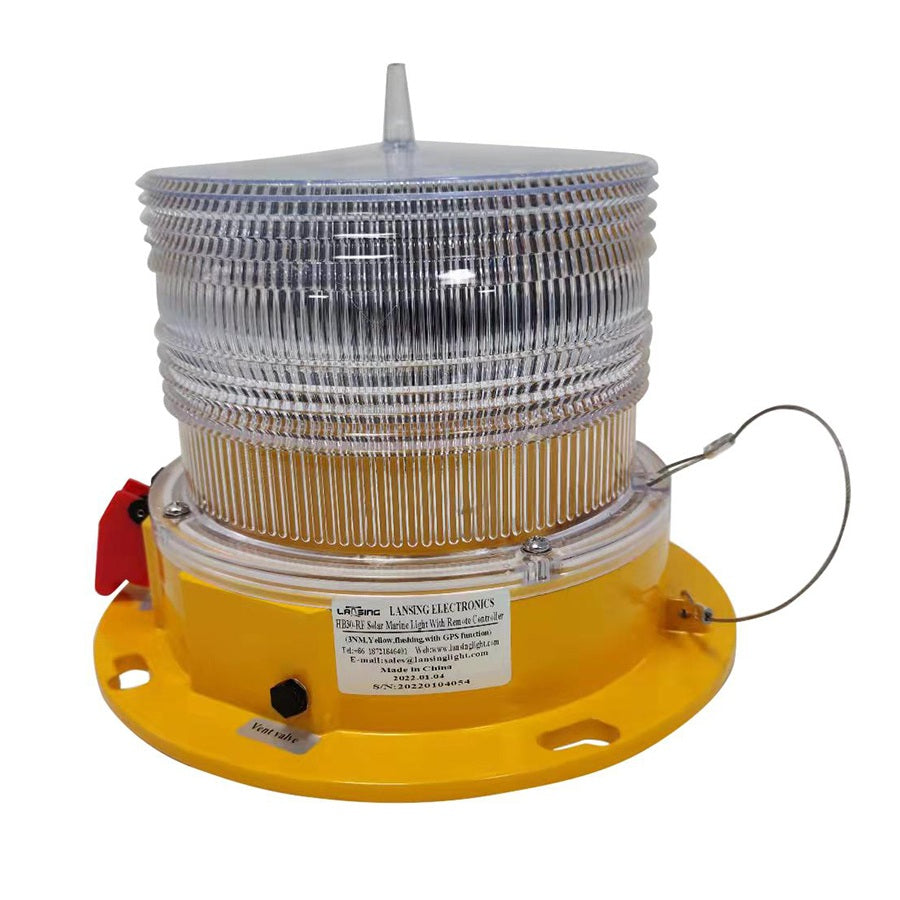

LED Solar Powered Marine Light 2.5 NM

HB30 LED Solar marine light has become the most classical solar-powered LED Light in the field of marine aid to navigation around the world.
Because of its self-contained, reliability and durability, it has also become a perfect model for all kinds of warning applications. It installs in minutes
and requires no maintenance or servicing for up to five years. It complies with IALA-AISM's requirements.
The LED marine light is one of the most advanced in its class, and incorporates a host
of innovative features designed to make the unit extremely user-friendly.
The world-class LED lens is designed by Lansing and achieves precise intensity and
sectoring requirements from a single LED light source.

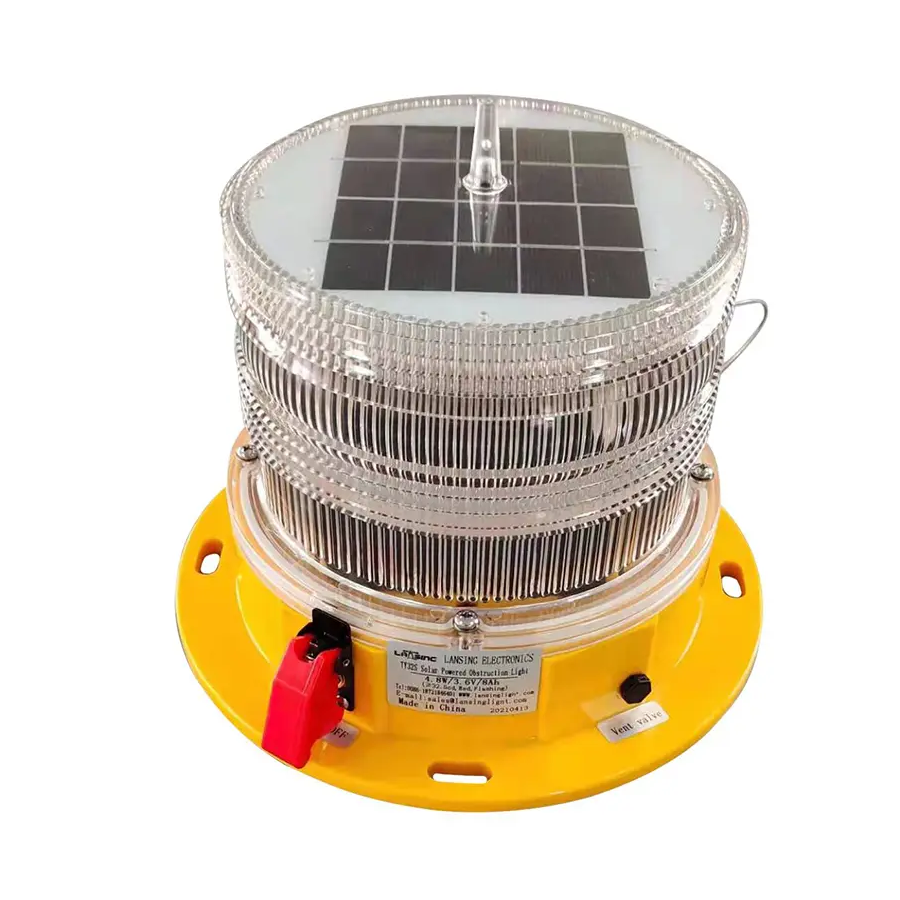

The unit has a high-performance solar panel mounted on the top of light, which
maximize solar collection and provide reliable operation in a range of environmental
conditions. And it is equipped with an 8Ah NiMH rechargeable battery which could
power the light up to 20 days when the weather is cloudy & rainy.
The fixture integrates an internal photodiode for automatic night activation once the
ambient light threshold drops sufficiently. HB30 is also available with an optional on/off
switch for storing and protect battery from over-discharging.Robust aluminum body
with powder coating provides excellent protection against harsh environments
 8 pcs of ultra-bright LEDs, reliable light source ensures long lifespan
• Compliant to IALA Recommendations E-200-1
• Integrated high-performance solar panel /battery system
• Integrated MPPT (Maximized Power Point Tracking) for maximizing sunlight collection
• Automatic night activation
• Integrated SBM (Smart Battery Management) for saving energy to extend autonomy
• Fresnel optical lens provides excellent light distribution
• Lens made from durable, UV-stabilized LEXAN polycarbonate

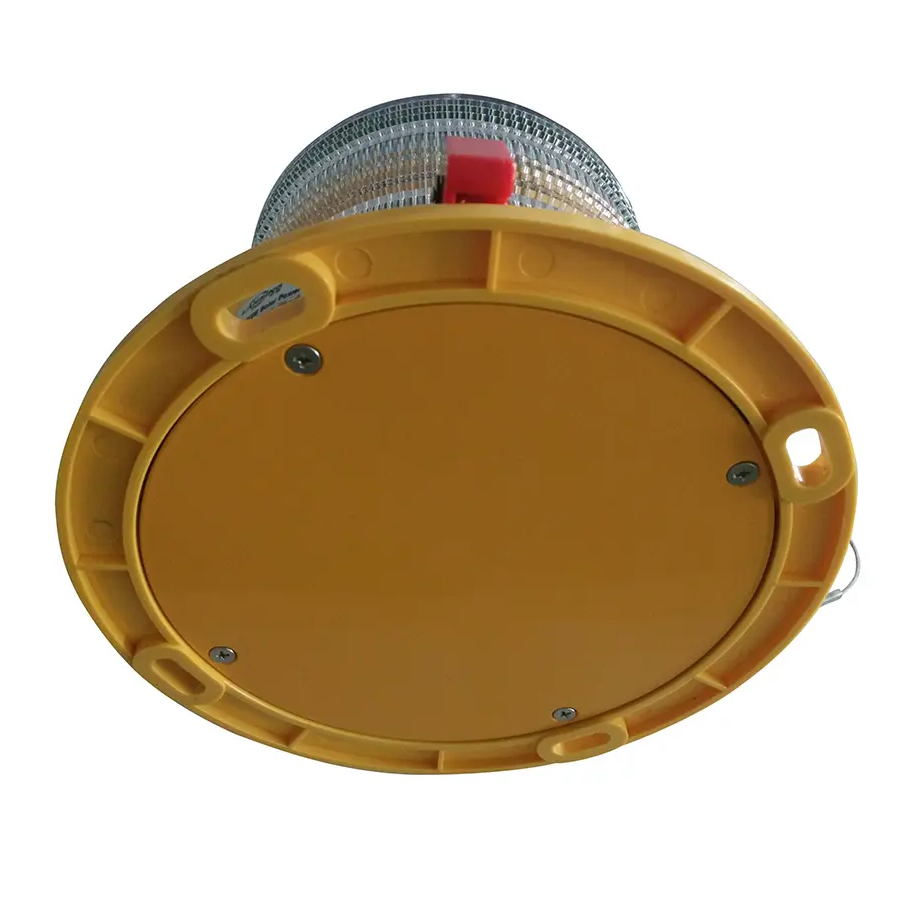

• Aluminum base with powder painted, corrosion-resistant
• Autonomy up to 20 days once fully charged during insufficient sunlight days
• Automatically off after being packed for 18 hours
• Protective vent for expelling battery gas and reduce condensation
• Bird spike against birds landing and nesting
• No regular maintenance
• Excellent shock and vibration resistant

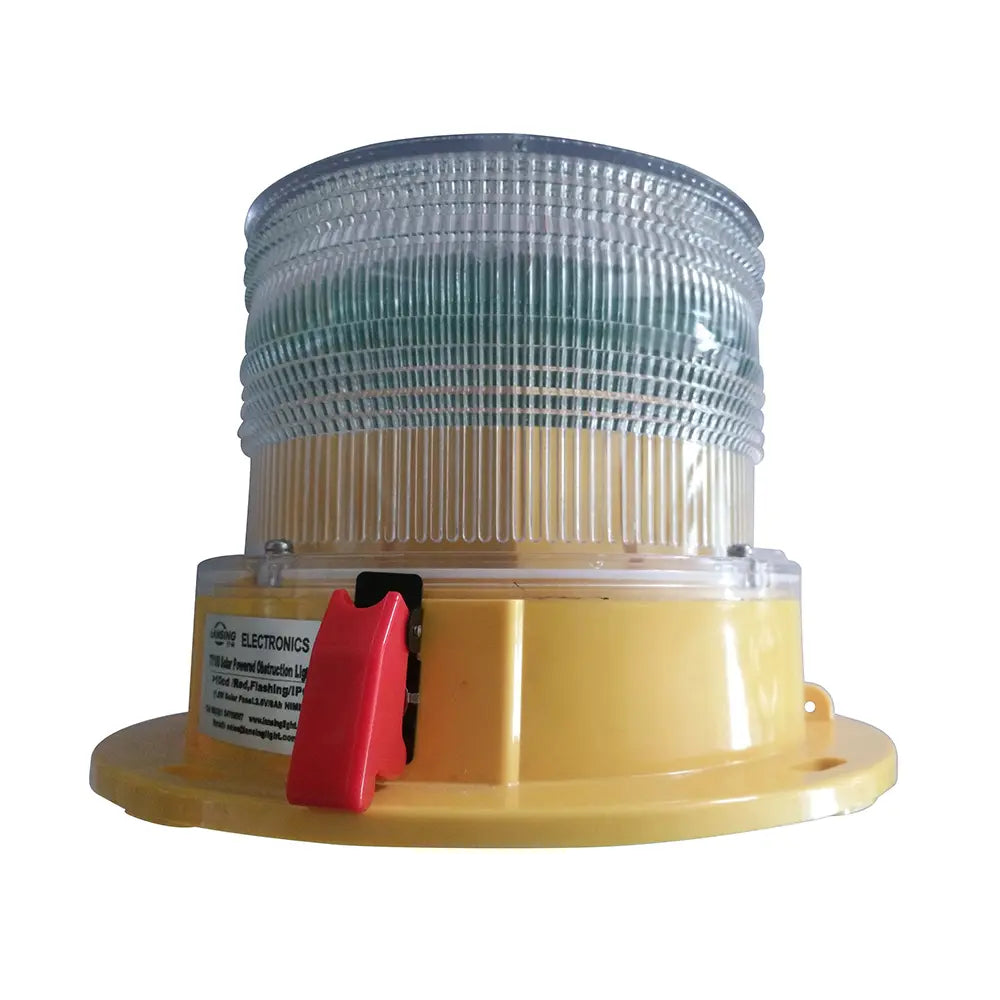

• IP67 ON-OFF switch for protecting the battery from over-discharging
• Stainless steel safety rope protects light head from fall-off during maintenance
• Installs in seconds
• Dip switch for fixed type to flashing changeable
• Optional GPS synchronization function
Visible distance : >2.5nm
Vertical Divergence :  ±7.5 Degree
Horizontal out-put 360 Degree or 112 degree

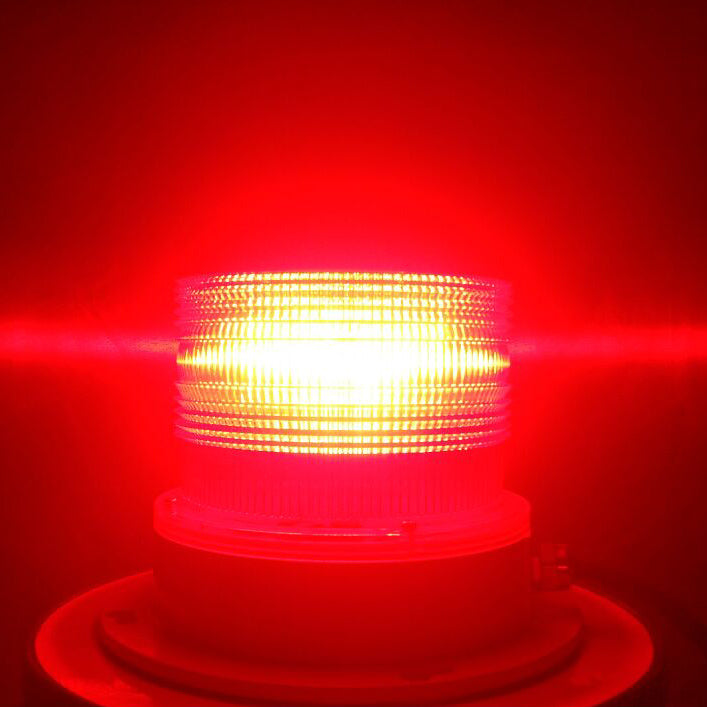

LED Color : Red ,White, yellow, green.
LED Lifespan : 100,000 Hours
Woke mode Flashing or steady burning
Flash Pattern(optional) Flashing : 20/30/40/60FPM; Default : 40FPM;
Flash duration :  670ms
Photocell sensitivity :  70-100 Lux
Autonomy 20 days(flashing), 10 days(steady burning)
Alarm type NO & NC, dry contact relay (optional)
Solar panel Solar module, mono-crystalline silicon 5V 1.8W
Solar Efficiency 21%
Battery capacity NIMH, 3.6V/8Ah
Battery replacement Replaceable
Lens Polycarbonate, UV Stabilize
Body Aviation yellow powder-coated extruding aluminum
IP Ingress IP67
Weight 2KG (Polycarbonate base) 3KG(Aluminum base)
Operating Temperature -30℃ ~ +55℃
Storage Temperature -40℃ ~ +55℃
