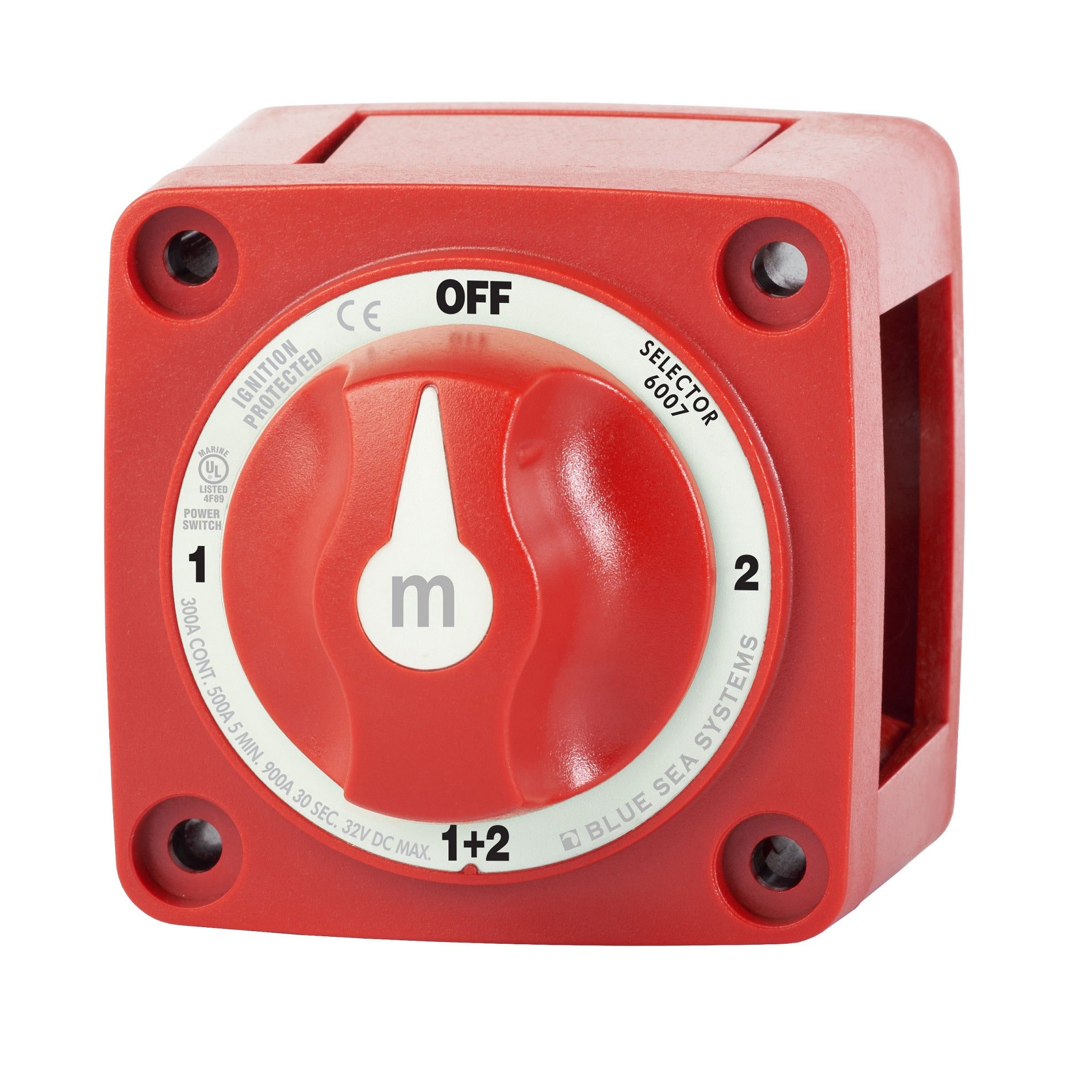

Mini Selector Battery Switch
وصف
M-Series Mini Dual Circuit Plus™ Battery Switch.
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type : Selector 4 position.
Switch Positions : 4.
Battery Combine : Yes.
Maximum Voltage : 32 VDC.
Stud Size : 3/8".
Terminal Stud Torque : 120 in-lb (13.56 Nm).
Continuous Rating : 300A.
Intermittent Rating : 500A (5 min).
Battery Inputs : 2.
Stud Torque : 120 in-lb (13.56 Nm).
Terminal Stud Size : 3/8" - 16 (M10).
Weight : 0.77lb (0.35 kg).
Simultaneously switches two isolated battery banks or combines battery banks to all loads.
Make before break contact design allows switching between battery banks without power interruption.
Switch Type : Selector 4 position.
Switch Positions : 4.
Battery Combine : Yes.
Maximum Voltage : 32 VDC.
Stud Size : 3/8".
Terminal Stud Torque : 120 in-lb (13.56 Nm).
Continuous Rating : 300A.
Intermittent Rating : 500A (5 min).
Battery Inputs : 2.
Stud Torque : 120 in-lb (13.56 Nm).
Terminal Stud Size : 3/8" - 16 (M10).
Weight : 0.77lb (0.35 kg).
Mini Selector Battery Switch
سعر البيع17.000 KD
