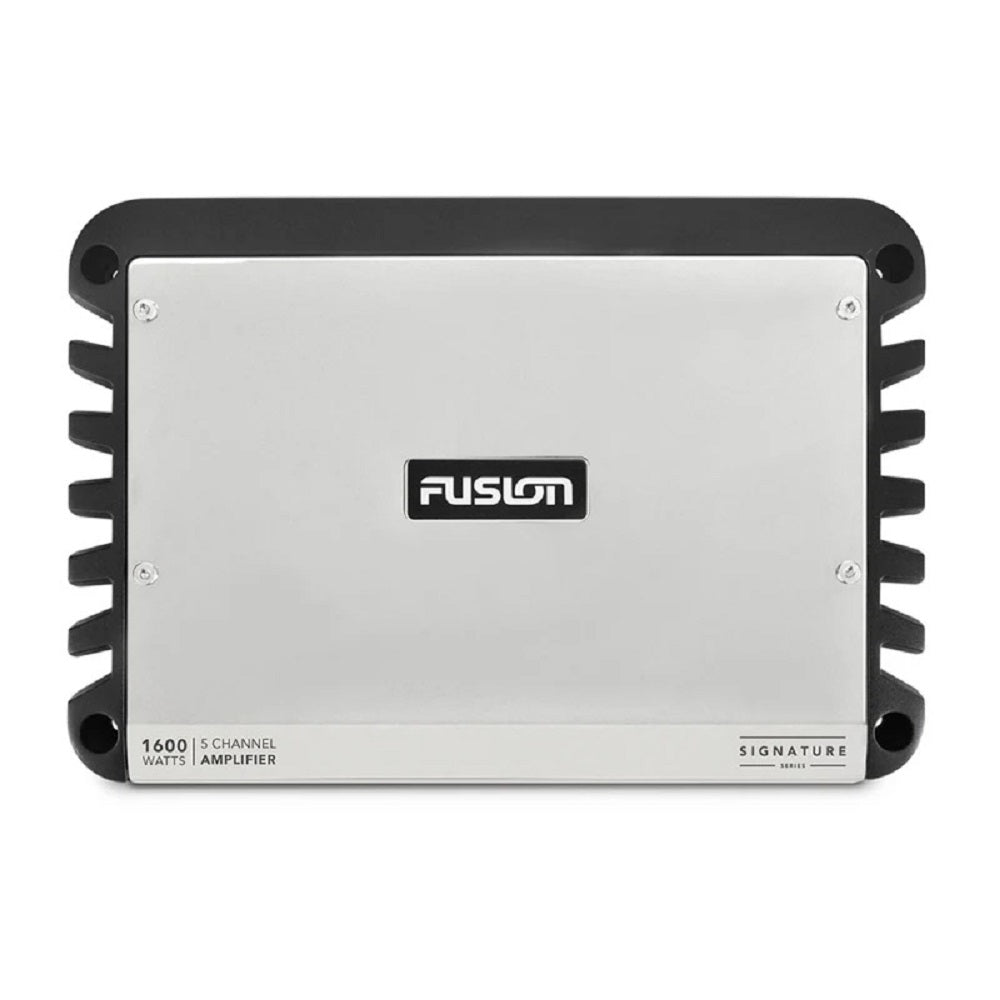

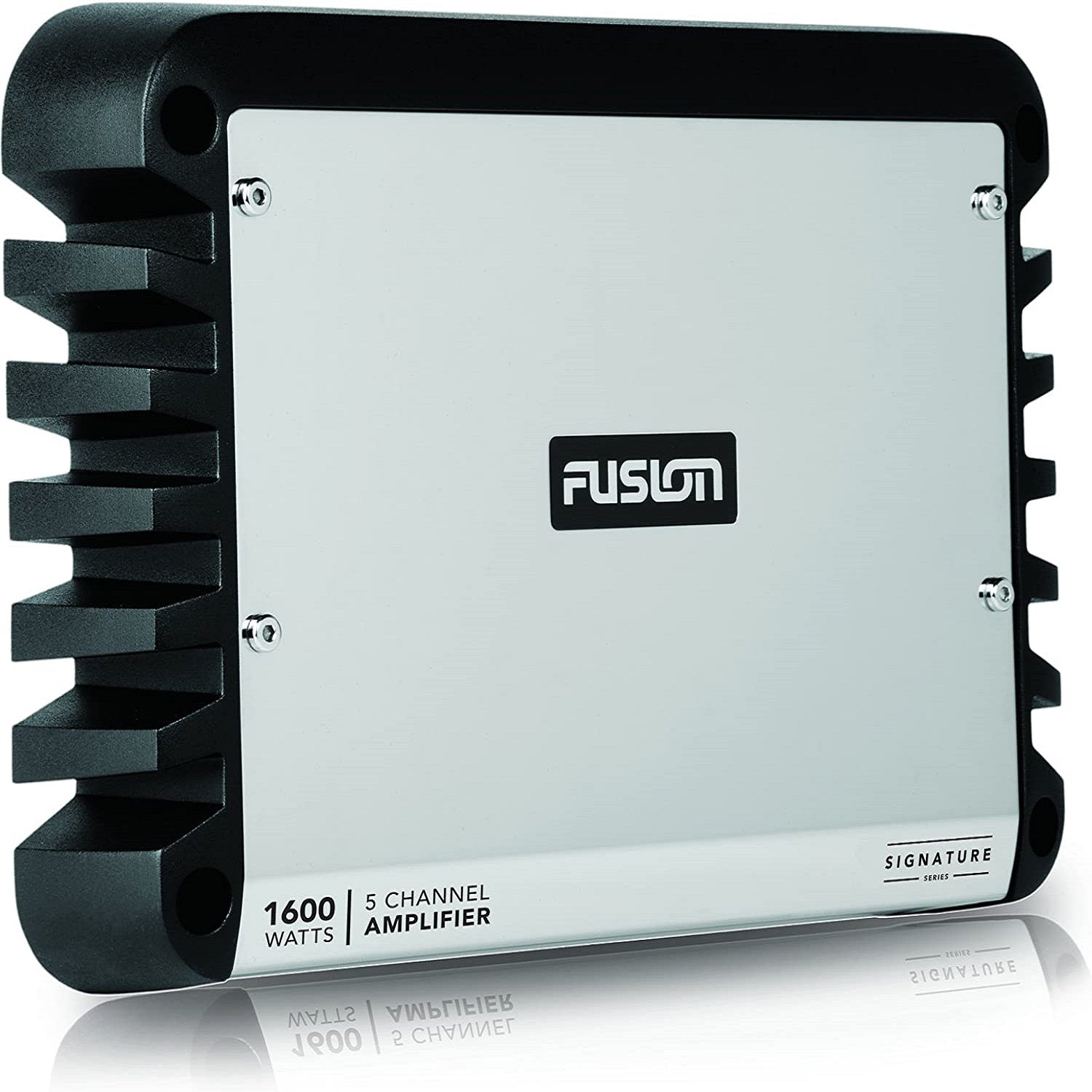

Signature Series 5 Channel Amplifier 1600 Peak Watt
وصف
The Fusion Signature Series marine amplifiers are purpose-built for the marine environment. Its True-Marine design will resist corrosion, and the incredible 1600 Watt peak power will power 4 speakers and 1 subwoofer with ease.
The SG-DA51600 is Fusion's first 5 channel, Class-D Hi-Fi marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA51600 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.
Speaker Configuration - Whether you require 2 Ohms per channel or 4 Ohms bridged, your Signature Series amplifier has your installation options covered to achieve the optimum output levels.
Connect up to two speakers per channel at 2 Ohms, or for extra power, bridge two channels at 4 Ohms to connect two subwoofers.

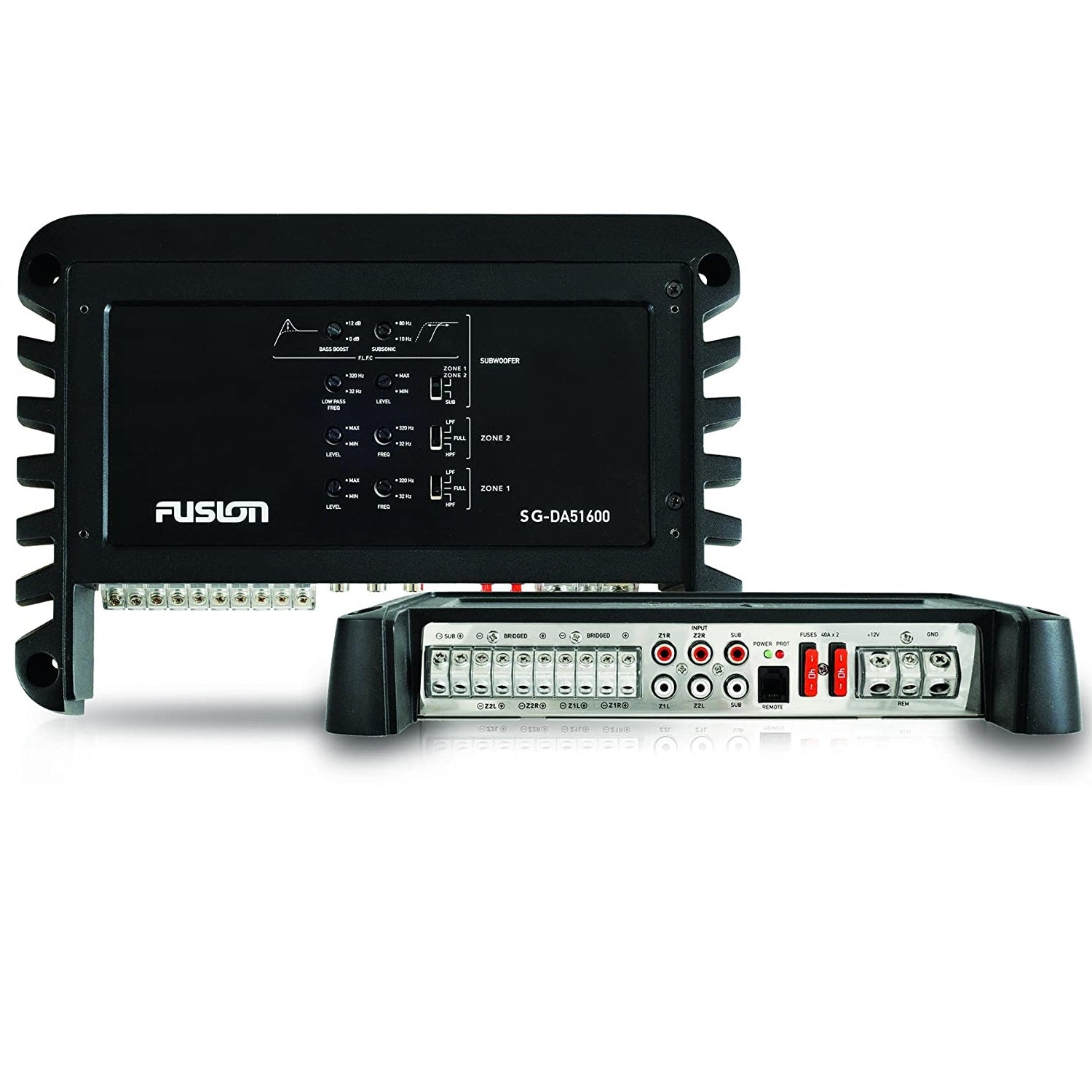

Zone Designation - To align with the Fusion entertainment system zone philosophy, the input and output connections are labelled as zones.
Amplifier Class : Class-D
Frequency Response : 10Hz - 50kHz
Peak Power : 1600 Watts
Rated Power (4 Ohms) : 80 Watts RMS x 4 + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Rated Power (2 Ohms) : 130 Watts RMS x 4 + 330 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD
Rated Power (4 Ohms Bridged) : 250 Watts RMS x 2 @ 14.4V - 4 Ohms Bridged 1% THD + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Mounting Dimensions : Length - 300mm [ 11-13/16" ] , Depth - 210mm [ 8-1/4" ] , Height - 50mm [ 2" ] .
The SG-DA51600 is Fusion's first 5 channel, Class-D Hi-Fi marine amplifier. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA51600 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.
Speaker Configuration - Whether you require 2 Ohms per channel or 4 Ohms bridged, your Signature Series amplifier has your installation options covered to achieve the optimum output levels.
Connect up to two speakers per channel at 2 Ohms, or for extra power, bridge two channels at 4 Ohms to connect two subwoofers.
Zone Designation - To align with the Fusion entertainment system zone philosophy, the input and output connections are labelled as zones.
Amplifier Class : Class-D
Frequency Response : 10Hz - 50kHz
Peak Power : 1600 Watts
Rated Power (4 Ohms) : 80 Watts RMS x 4 + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Rated Power (2 Ohms) : 130 Watts RMS x 4 + 330 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD
Rated Power (4 Ohms Bridged) : 250 Watts RMS x 2 @ 14.4V - 4 Ohms Bridged 1% THD + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD
Mounting Dimensions : Length - 300mm [ 11-13/16" ] , Depth - 210mm [ 8-1/4" ] , Height - 50mm [ 2" ] .
