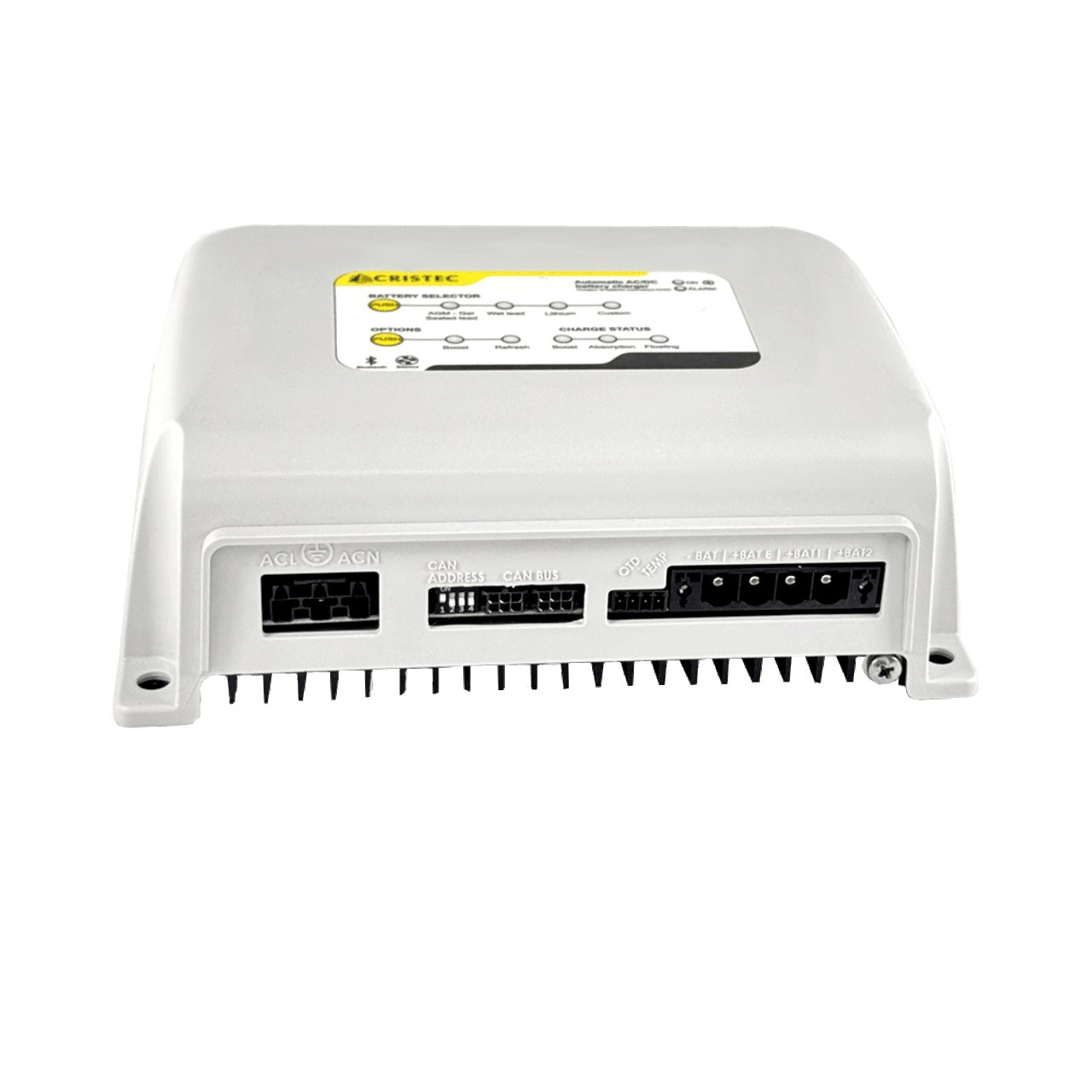

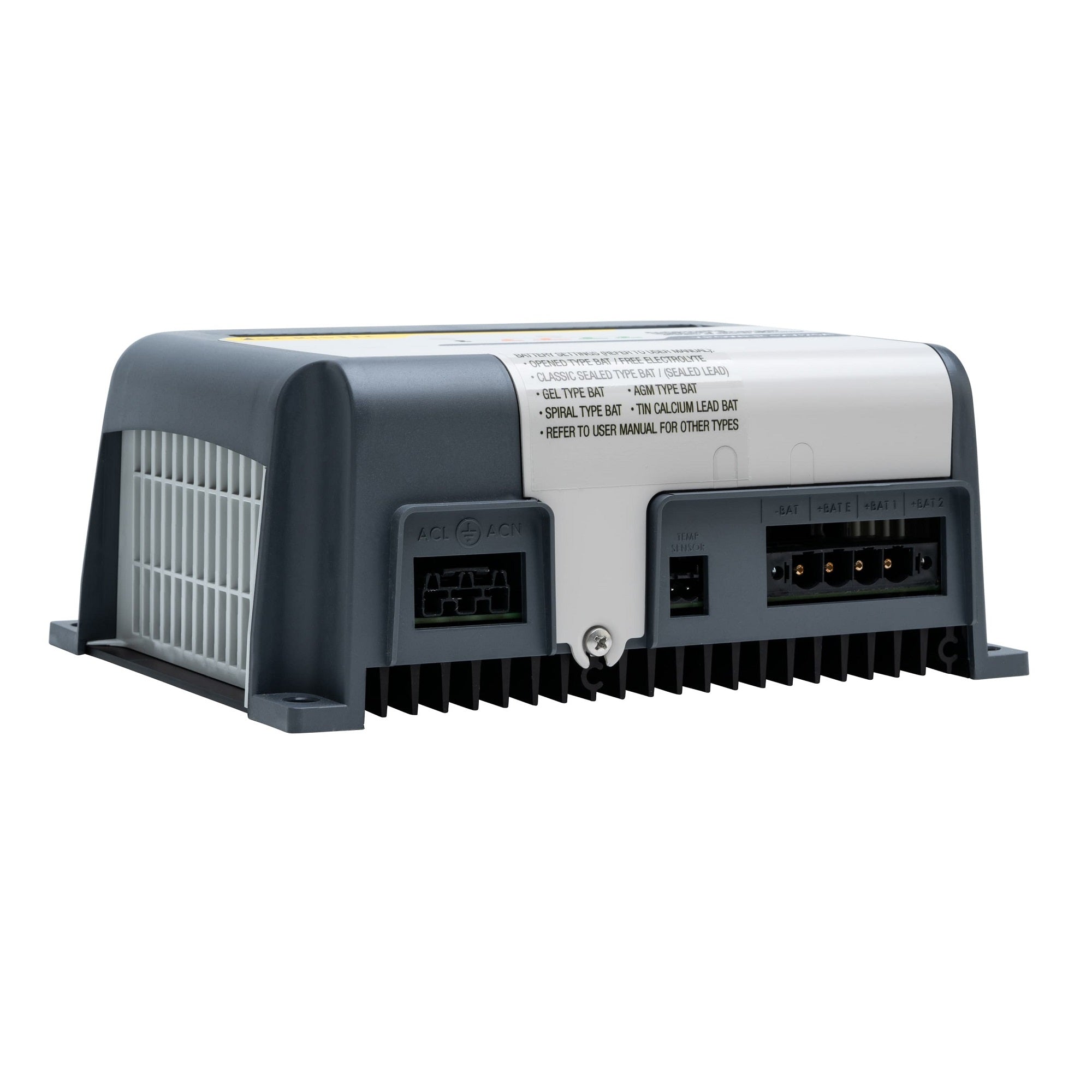

YPower Battery Chargers
وصف
With more than 150,000 HF battery chargers installed worldwide, CRISTEC is proud to present its fifth generation of HF chargers: YPOWER range.
Indeed, being robust, reliable and efficient, the latter will offer you professional use of quality and comfort of use thanks to its multi-output function.
Silent operating : CRISTEC is the only manufacturer offering chargers up to 12V 70A with natural convection (without fan). This advantage gives the YPOWER+ chargers a completely silent operation and an optimized lifespan. It is therefore possible to install them anywhere on board, including under a berth.
3 or 4 independent banks depending on models : The YPOWER+ chargers are the only chargers which have up to 4 independent and non-limited outputs.
5-stage charging profile: Boost : charges batteries to 80% of full charge - Absorption: slowly completes remaining charge to 100% - Floating: maintains battery charge - Automatic refresh: prevents sulphation and revitalizes batteries, selectable by keypad pushbutton - Reboost: new automatic Boost phase if DC consumers and the state of batteries so require. A regulated DC power-supply mode is also available : YPOWER+ chargers can be used as high-voltage DC-DC converters with input ranging from 121 to 375VDC.
Easy connection : Plug & Play connection, secure, simple and fast without opening the charger. AC and DC connectors are included.
Low Energy CRISTEC Connect : The YPOWER+ chargers are equipped with a CRISTEC Connect Low Energy , variant of “classic” CRISTEC Connect. The major advantage of CRISTEC Connect Low Energy is its low power consumption as it consumes half the power of a classic CRISTEC Connect.
No derating : Chargers have full charge up to +40°C or +60°C (140°F) with no loss, depending on the model.
Ignition protected : All models can be installed in the engine room thanks to ISO8846/SAE J1171 compliance which protects against ignition of flammable gases.
Worldwide use : Automatic detection of the power supply network, from 90 to 265VAC and from 47 to 65Hz. You do not have to care about the AC power grid or genset voltage.
Adaptative charging : Custom-made and simultaneous recharge of 3 or 4 battery banks. YPOWER+ chargers can be connected to various types of batteries simultanously: - Opened classic lead - Sealed, gel or AGM - Spiral sealed Lithium Iron Phosphate (LiFePO4) with BMS. Selection of your technology of battery is easy thanks to the front keypad.
Material : Aluminium sink frame and clasp / Thermoplastic body.
AC Voltage : From 90 to 265VAC single-phase automatic.
DC Voltage : From 121 to 375VDC.
Frequency : From 47 to 65Hz automatic.
Efficiency : 92.8% in 230VAC & 91% in 115VAC.
Input fuse : T6.3A/250V to T15A/250V.
Remote control :The chargers are fitted with a CAN-Bus and a CRISTEC Connect interface as standard. Connection to an NMEA network is also available through an optional adaptor.
Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
Solar : isolated sites.
Indeed, being robust, reliable and efficient, the latter will offer you professional use of quality and comfort of use thanks to its multi-output function.
Silent operating : CRISTEC is the only manufacturer offering chargers up to 12V 70A with natural convection (without fan). This advantage gives the YPOWER+ chargers a completely silent operation and an optimized lifespan. It is therefore possible to install them anywhere on board, including under a berth.
3 or 4 independent banks depending on models : The YPOWER+ chargers are the only chargers which have up to 4 independent and non-limited outputs.
5-stage charging profile: Boost : charges batteries to 80% of full charge - Absorption: slowly completes remaining charge to 100% - Floating: maintains battery charge - Automatic refresh: prevents sulphation and revitalizes batteries, selectable by keypad pushbutton - Reboost: new automatic Boost phase if DC consumers and the state of batteries so require. A regulated DC power-supply mode is also available : YPOWER+ chargers can be used as high-voltage DC-DC converters with input ranging from 121 to 375VDC.
Easy connection : Plug & Play connection, secure, simple and fast without opening the charger. AC and DC connectors are included.
Low Energy CRISTEC Connect : The YPOWER+ chargers are equipped with a CRISTEC Connect Low Energy , variant of “classic” CRISTEC Connect. The major advantage of CRISTEC Connect Low Energy is its low power consumption as it consumes half the power of a classic CRISTEC Connect.
No derating : Chargers have full charge up to +40°C or +60°C (140°F) with no loss, depending on the model.
Ignition protected : All models can be installed in the engine room thanks to ISO8846/SAE J1171 compliance which protects against ignition of flammable gases.
Worldwide use : Automatic detection of the power supply network, from 90 to 265VAC and from 47 to 65Hz. You do not have to care about the AC power grid or genset voltage.
Adaptative charging : Custom-made and simultaneous recharge of 3 or 4 battery banks. YPOWER+ chargers can be connected to various types of batteries simultanously: - Opened classic lead - Sealed, gel or AGM - Spiral sealed Lithium Iron Phosphate (LiFePO4) with BMS. Selection of your technology of battery is easy thanks to the front keypad.
Material : Aluminium sink frame and clasp / Thermoplastic body.
AC Voltage : From 90 to 265VAC single-phase automatic.
DC Voltage : From 121 to 375VDC.
Frequency : From 47 to 65Hz automatic.
Efficiency : 92.8% in 230VAC & 91% in 115VAC.
Input fuse : T6.3A/250V to T15A/250V.
Remote control :The chargers are fitted with a CAN-Bus and a CRISTEC Connect interface as standard. Connection to an NMEA network is also available through an optional adaptor.
Recreational marine : yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
Solar : isolated sites.

YPower Battery Chargers
سعر البيع179.000 KD
