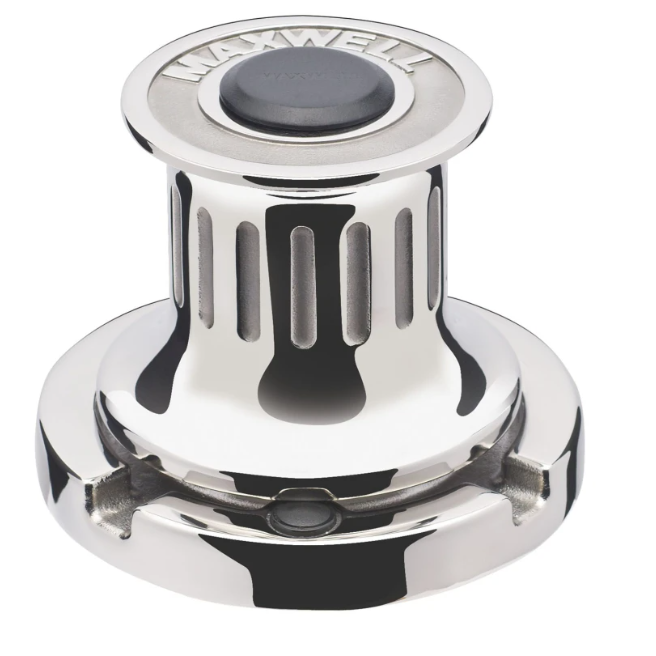

1000 VC 100TDC 12V

The stainless steel (AISI 316) fluted capstan VC series is designed for simple, low-cost anchor recovery on smaller boats and rope hauling on larger vessels.
Vertical design suits smaller powerboats or sailboats and can be utilised for anchor rodes, as a docking capstan on larger craft, or auxiliary line hauling from any direction
High quality, hard wearing stainless steel (AISI 316) above deck components
Functional rope hauling from any direction using a fluted, snag-free warping drum for positive control of all ropes
Simplified through deck installation by modular design and precise alignment of gearbox to the topworks
Alternative gearbox/motor positions accommodate virtually all installation situations.
Anodized aluminium gearbox and spacer VC 1000 models.
Heavy duty, dual direction motors, designed for marine operations.
Easily disassembled for servicing.
Can be mounted horizontally for use as a pot hauler or davit winch.
*Switch and Breaker NOT included.*
Maximum Pull :700 kg (1540 lbs).
Static Hold :1200 kg (2640 lbs).
Line Speed (Normal Working) :  20m/min (65ft/min).
Power Supply (DC) :12V.
Motor (Watt) :1000 W.
Net Weight (DC) :18 kg (40 lbs).
Hydraulic Pressure100 bar (1450 psi).
Hydraulic Flow : 20 l/min (5.3 US gal/min).
Net Weight (Hydraulic) :  11 kg (24 lbs).
Chain (mm) :  6 - 7.
Rope (mm) :  12.
