4-Channel Full-Range Class D Amplifier 2400 Peak Watt

4-Channel Full-Range IP67 Marine and Powersports Amplifier 200 x 4 @ 4-Ohm Watts Rms.
Introducing the NVY-T800.4D: a versatile 4-channel amplifier designed for high quality audio reproduction and unbreakable durability.
The NVY-T800.4D was designed to withstand the harshest elements: it’s IP67 waterproof rating and UV/SALT/Fog Protection, paired with it’s surface mount component technology and direct harness design allows this amplifier to be installed anywhere easily without sacrificing space!
The NVY-T800.4D also features a 2CH/4CH Input Selector so you can use 2 RCAs or 4 depending on your setup.
It’s wide range of protection features, including thermal protection, over-load protection, short circuit output protection, and voltage input protection reinforced by power, protection, and clipping indicators ensures the safety and longevity of the NVY-T800.4D.

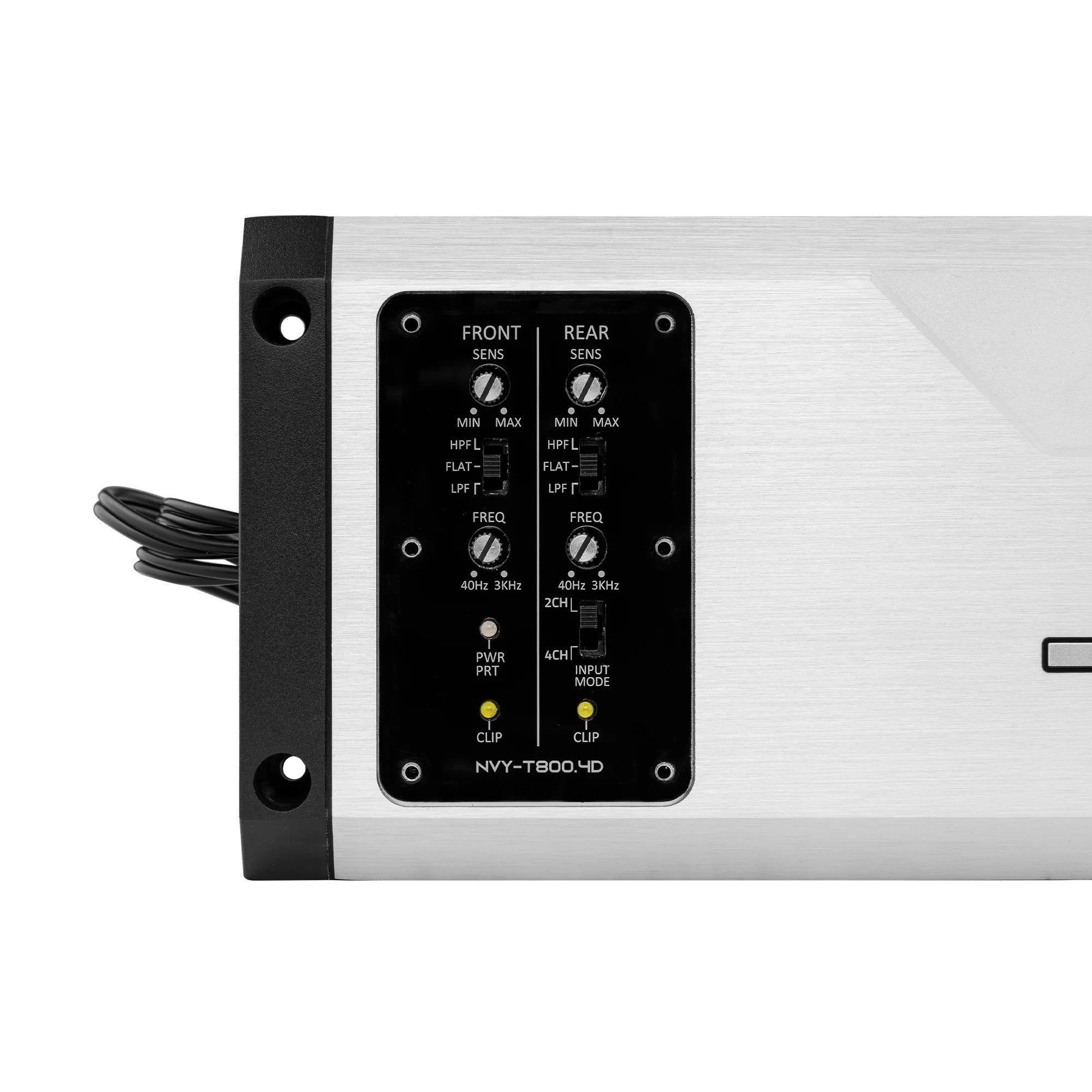

Equipped with selectable HPF, LPF, and FULL crossover filters; the NVY-T800.4D allows you to customize your sound to your liking.
This stereo full range amplifier covers ranges from 20Hz-20KHz and has a signal-to-noise ratio of >80dB for crisp and clear audio with minimal distortion.
With a peak power output of 2400W and RMS power of 4 x 200W @ 4 ohm, 4 x 300W @ 2 ohm, and 2 x 600W @ 4 ohm bridge, the NVY-T800.4D is perfect for powering any speakers in your marine audio system.
Total Watts (Peak) : 2400W.
RMS Power @ 4 ohm : 4 x 200W.
RMS Power @ 2 ohm : 4 x 300W.
RMS Power @ 4 ohm Bridge : 2 x 600W.
Frequency Response : 10Hz-20KHz.
Signal to Noise Ratio 1W @ 4Ω : > 80dB.
Efficiency @ 4 ohm : 85%.
Input Impedance : 20K ohms.
Channel Separation : >55dB.
Low Level Input Range : 200mV-5V.
Amplifier Class : Digital.
Amplifier Type : Stereo Full Range.
Minimum Impedance : 2 Ohms (Stereo) / 4 Ohm (Bridge).

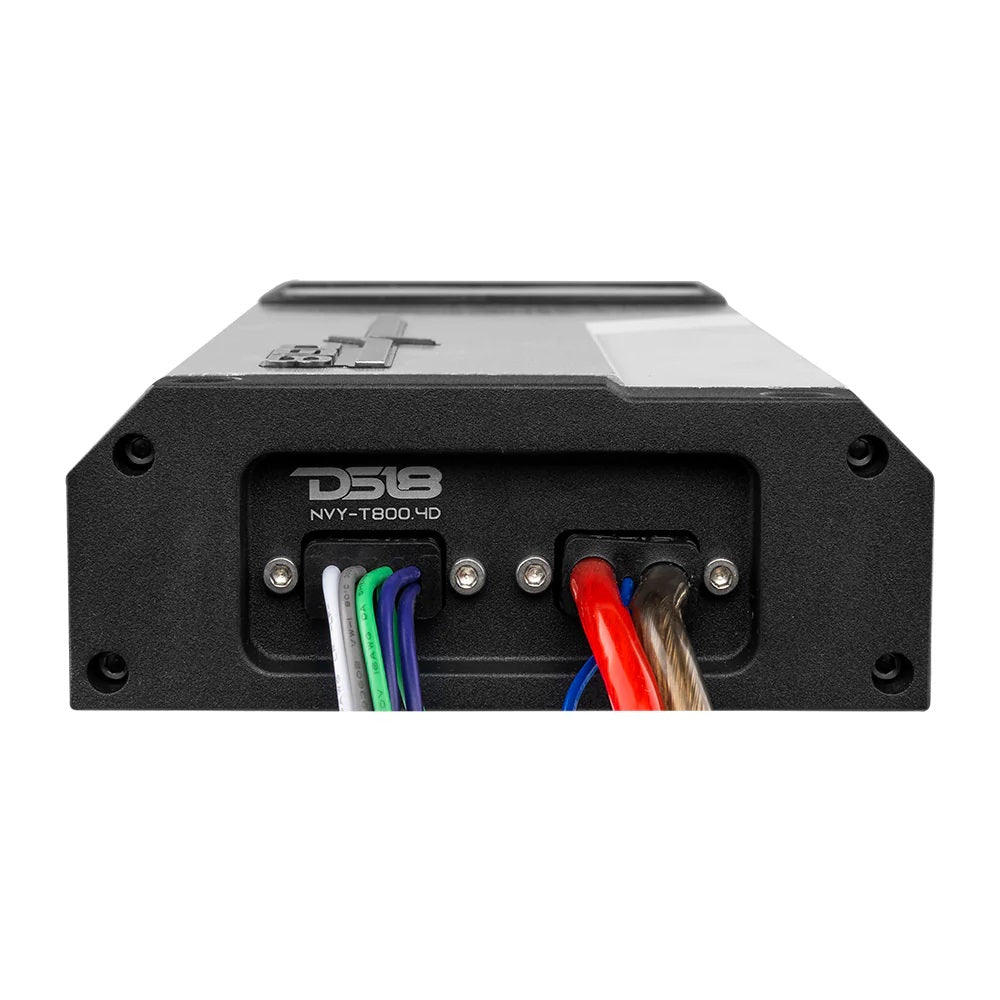

Power Input Terminal Size : 8GA Tinned OFC.
Recommended Fuse Size : 80A.
Body Color | Finish : Brushed Aluminum.
