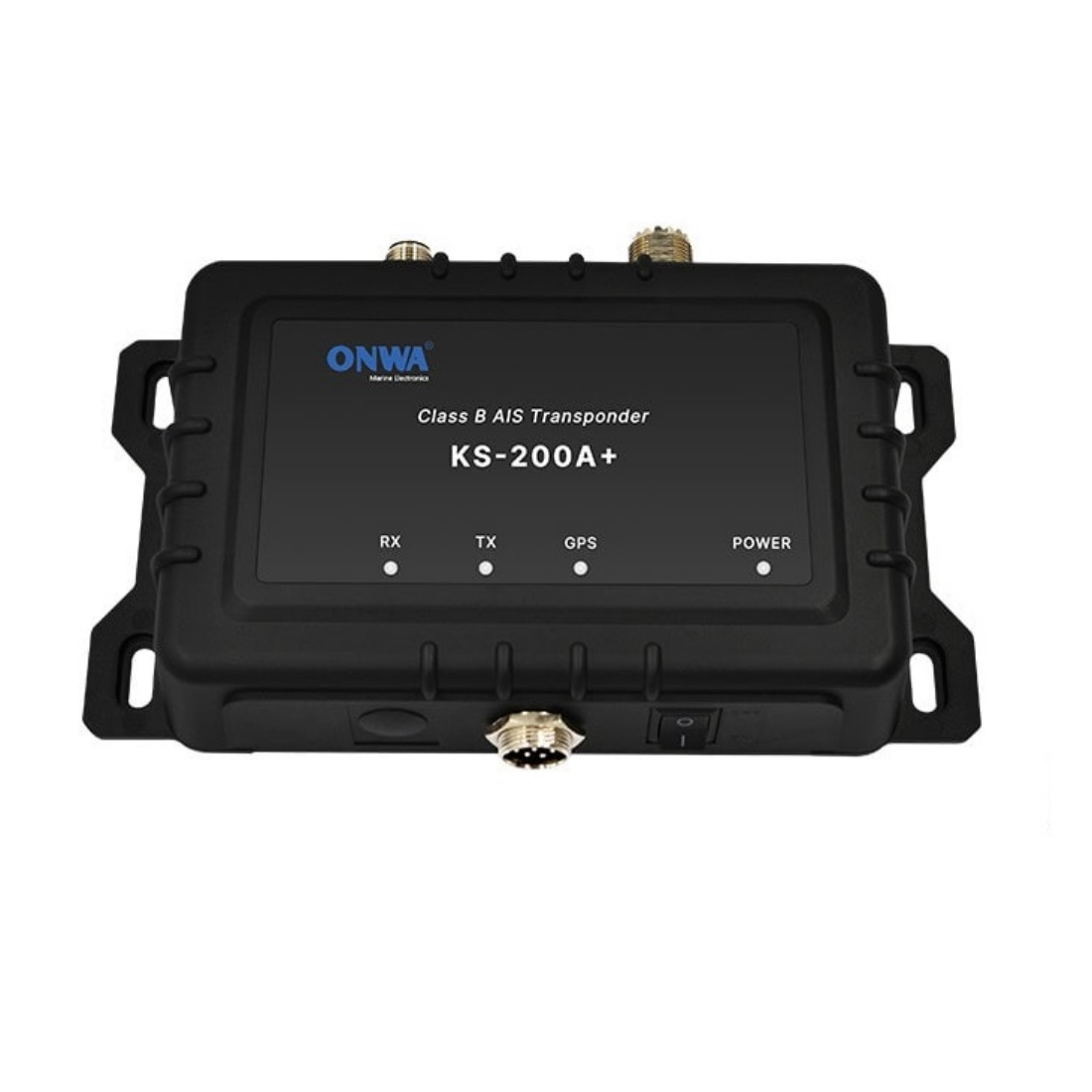

AIS TRANSPONDER CLASS B+
Description
GPS Receiver (AIS Internal) : IEC 31108-1 compliment.
Connectors : VHF Antenna connector PL259 female, GPS Antenna connector SMA female, NMEA 2000 Interface.
Dimension : 200mm (length) x 102mm (width) x 45.8mm (height)
Weight : 0.45 kg.
Power Input : 10.5~35 VDC.
Power Consumption : 0.20A nominal.
Electrical Interface : RS232 38,400 baudrate bi-directional
Environmental : IEC 60945 (Cat C)
Operating temperature : -25°C to +60°C
NMEA Sentence supported : VDM, VDO, RMC, GSV, GGA, GSA
Frequency rate : 161.975 MHz, 162.025MHz
Access Scheme : SOTDMA
Channel bandwidth : SOTDMA
Modulation : AIS GMSK
Number of IS Transmitter : 1
Number of AIS receiver : 2.
AIS Channel 1 : CH 87B (161.975 MHz).
AIS Channel 2 : CH 88B (162.025 MHz).
Standard TX power output : 5W.
Customizable TX power output : 2W, 12.5W.
RX Sensitivity : -120dBM @ 20% PER.
RX Message format : AIS CLASS A AND B MESSAGES.
Comply standard : IEC-62287 IEC 62287-2 Ed. 2.0:2017.
