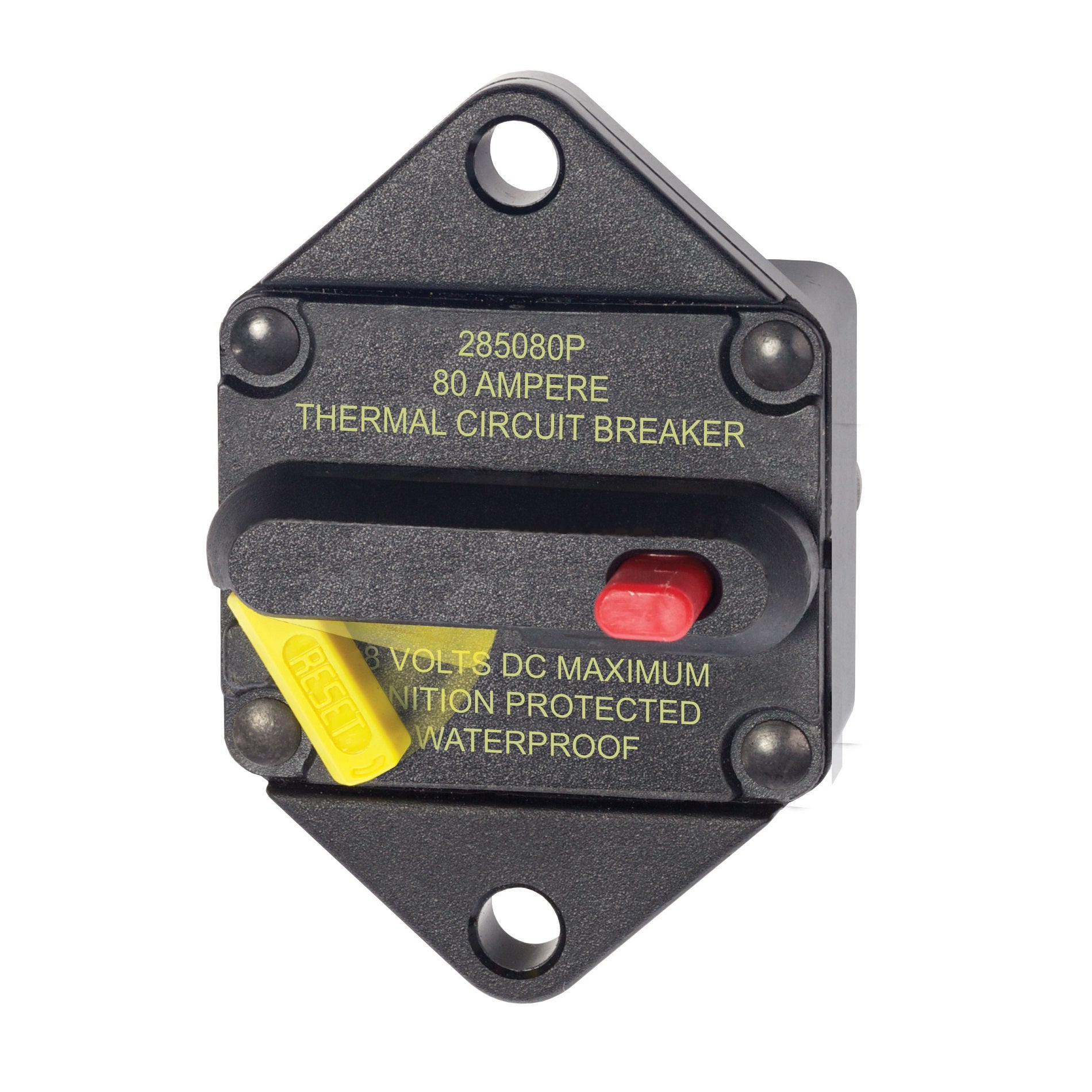

Circuit Breaker - Panel Mount
Description
285-Series Circuit Breaker - Panel Mount. Provides circuit protection for 25 to 150 Amp loads when switching and circuit protection are both required.
Drop in replacement for 185-Series Circuit Breakers.
Visible reset lever shows open condition.
Ignition protected - Safe for installation aboard gasoline powered boats.
Meets SAE J1171 external ignition protection requirements.
Weather Resistant.
Combines switching and circuit breaker function into one unit.
"Trip Free" - cannot be held closed after trip.
Amperage : 80A ,100A, 120A.
Maximum Voltage : 48V DC -Mounting Panel Mount.
Circuit Breaker Type : Thermally responsive Bi-metal blade.
Terminal Stud Torque : 50 in-lb (5.65 Nm).
Interrupt Capacity : 3000A @ 48V.
Minimum Operating Temperature : -40° C.
Maximum Operating Temperature : 85° C.
Circuit Breaker Class : Type III - switchable/manual reset - trip free.
Terminal Stud : M6 (accepts 1/4" Ring Terminal).
Weight : 0.50lb (0.23 kg).
Drop in replacement for 185-Series Circuit Breakers.
Visible reset lever shows open condition.
Ignition protected - Safe for installation aboard gasoline powered boats.
Meets SAE J1171 external ignition protection requirements.
Weather Resistant.
Combines switching and circuit breaker function into one unit.
"Trip Free" - cannot be held closed after trip.
Amperage : 80A ,100A, 120A.
Maximum Voltage : 48V DC -Mounting Panel Mount.
Circuit Breaker Type : Thermally responsive Bi-metal blade.
Terminal Stud Torque : 50 in-lb (5.65 Nm).
Interrupt Capacity : 3000A @ 48V.
Minimum Operating Temperature : -40° C.
Maximum Operating Temperature : 85° C.
Circuit Breaker Class : Type III - switchable/manual reset - trip free.
Terminal Stud : M6 (accepts 1/4" Ring Terminal).
Weight : 0.50lb (0.23 kg).
Circuit Breaker - Panel Mount
Sale price17.100 KD
Regular price19.000 KD (/)
