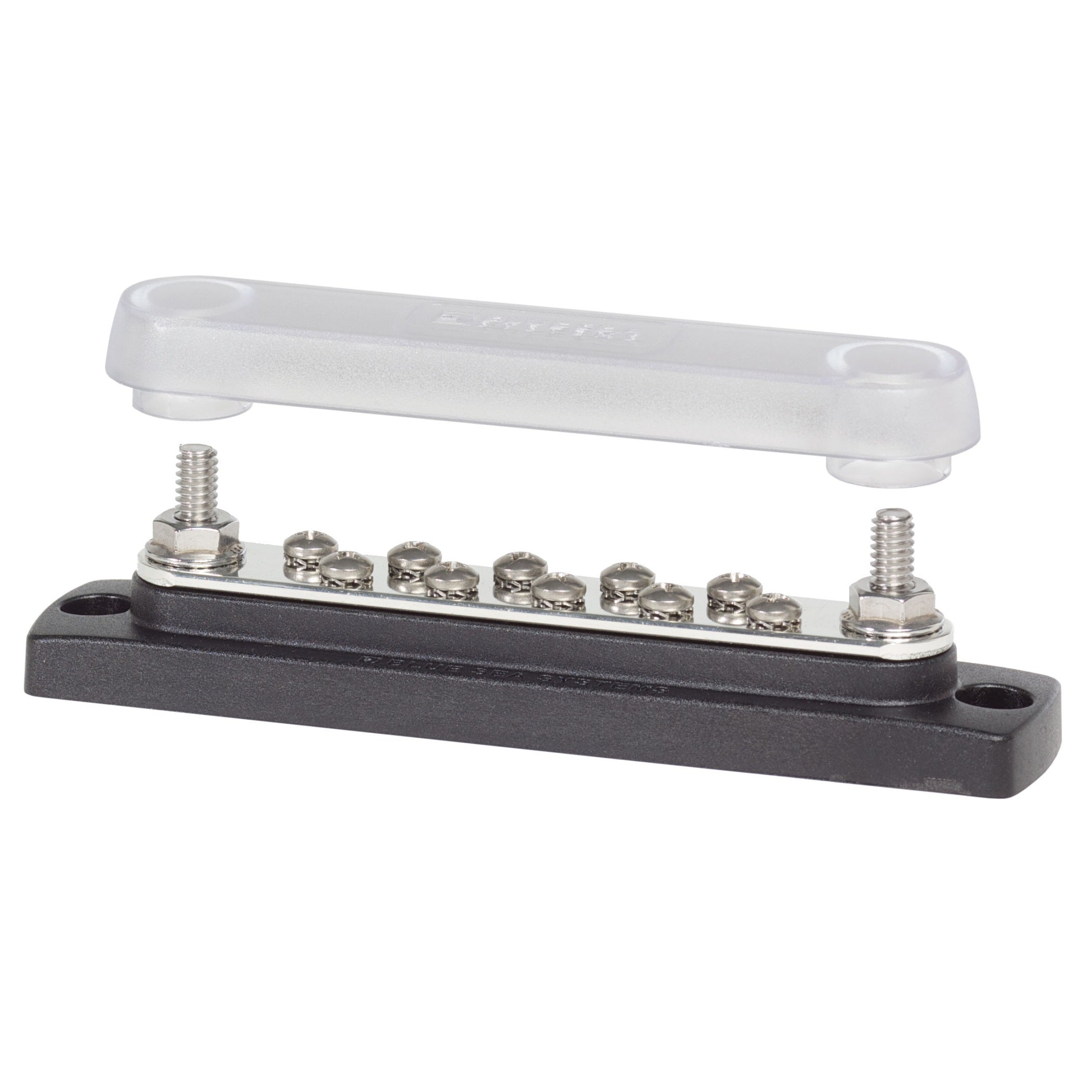

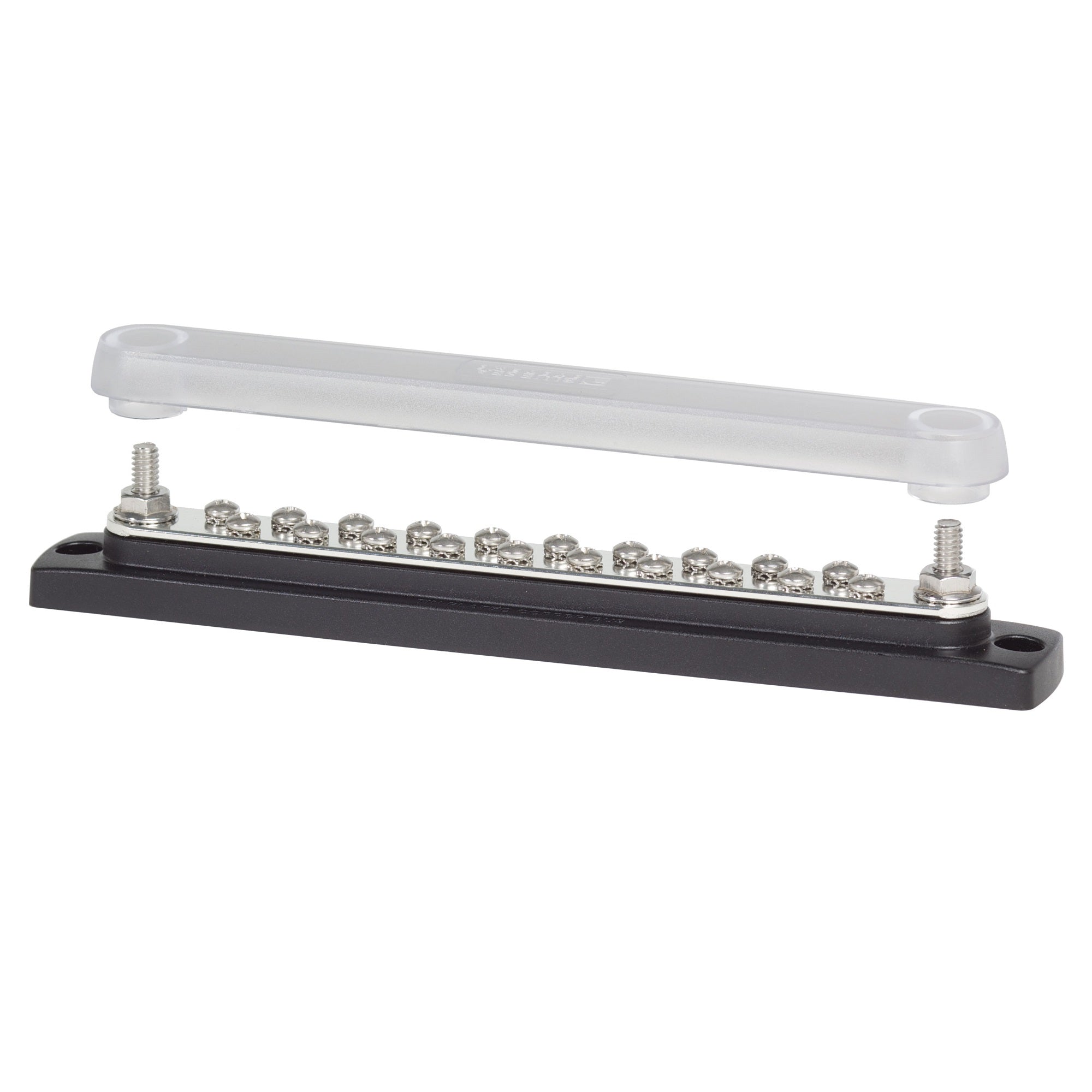

Common Bus Bar with Cover
Description
The industry standard busbar for positive distribution.
The industry standard busbar for the collection of negative or AC ground circuits.
Amperage : 150A
Maximum Voltage : 300V AC / 48V DC
Number of Screw Terminals: 10, 20.
Number of Terminal Studs : 2
Terminal Type : 1/4" Stud, #8-32 Screw
Continuous Rating: 130A AC, 150A DC
Base Material : UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material : Tin-Plated Copper CDA 110 / UNS 11000
Cover Material : Clear Polycarbonate
Screw Terminal Torque : 15 in-lb (1.69 Nm).
Stud Torque : 60 in-lb (6.78 Nm).
The industry standard busbar for the collection of negative or AC ground circuits.
Amperage : 150A
Maximum Voltage : 300V AC / 48V DC
Number of Screw Terminals: 10, 20.
Number of Terminal Studs : 2
Terminal Type : 1/4" Stud, #8-32 Screw
Continuous Rating: 130A AC, 150A DC
Base Material : UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material : Tin-Plated Copper CDA 110 / UNS 11000
Cover Material : Clear Polycarbonate
Screw Terminal Torque : 15 in-lb (1.69 Nm).
Stud Torque : 60 in-lb (6.78 Nm).
Common Bus Bar with Cover
