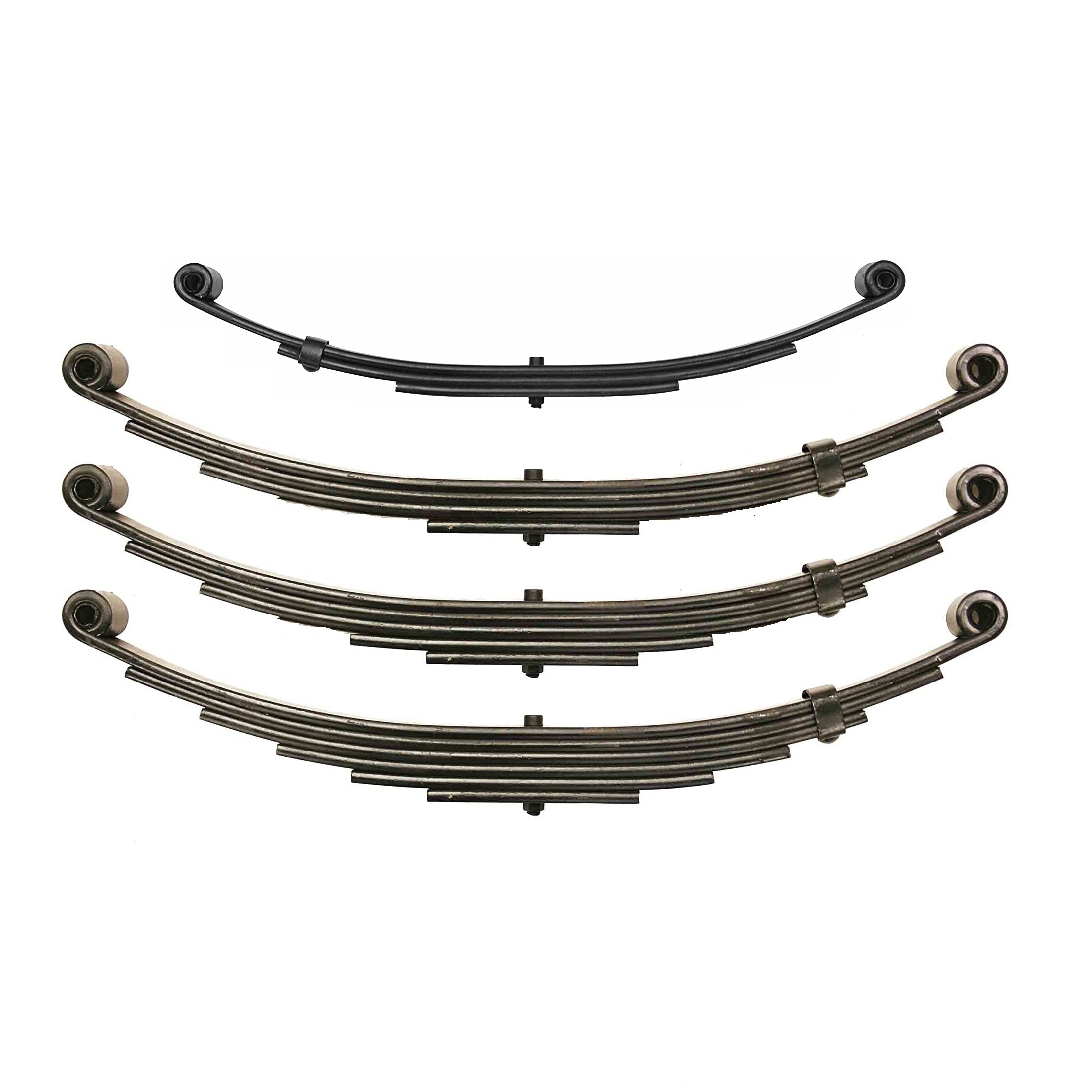

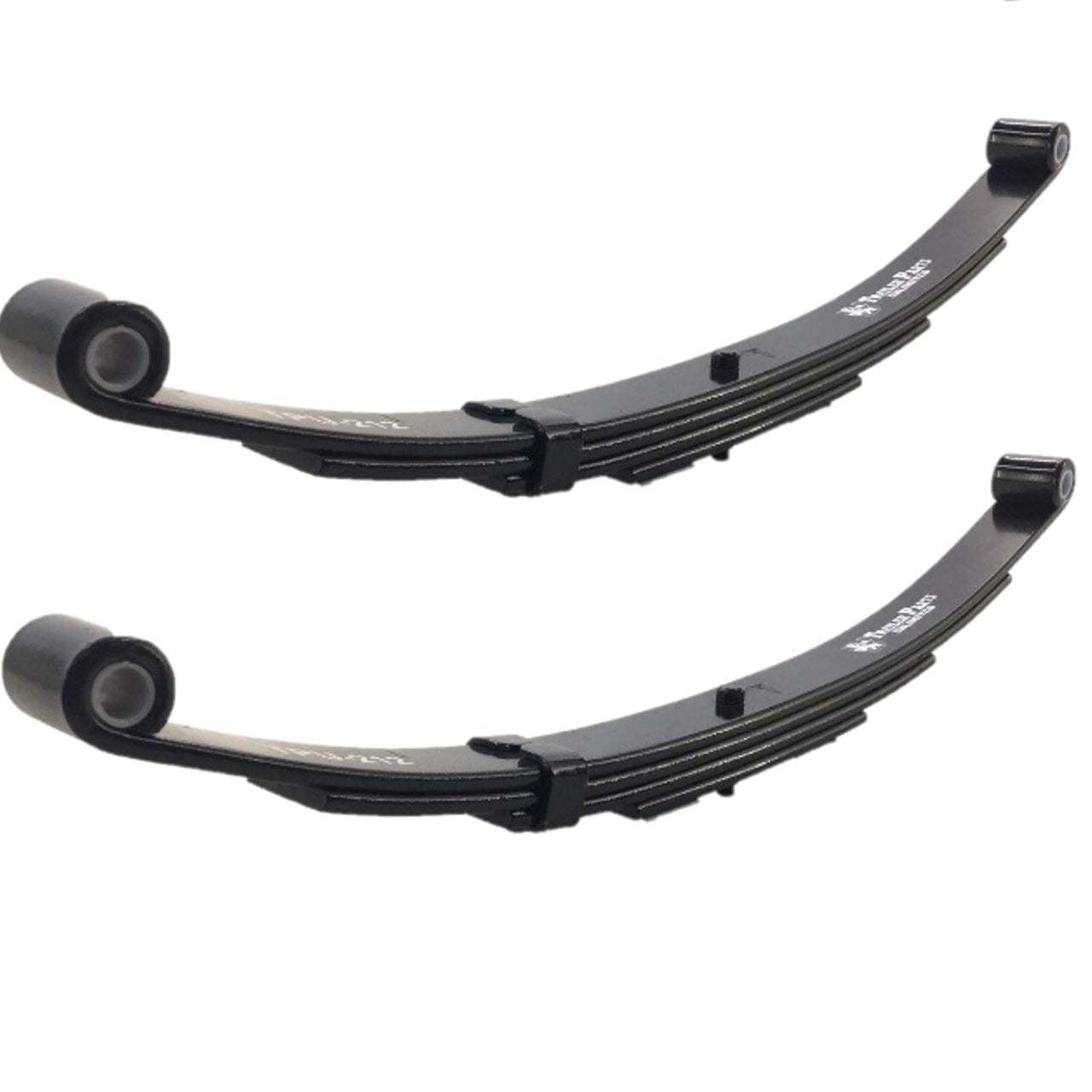

Double Eye Leaf Spring
Description
Leaf springs are the most common type of trailer spring. Their purpose is to absorb bumps in the road, allowing for smoother, less bumpy trailer operation. Leaf springs are usually located beside each wheel. They are made of metal strips stacked on top of each other to form a curved piece or “leaf”. The curvature of the leaf spring allows for the effective absorption of bumps and improves the control the driver has over the trailer.
Consistent quality springs in terms of even hardness and shape.
These springs can be used on both square tube or round tube trailer axles on boats or land trailers.
The only difference is in the style of U-Bolt Required to mount the spring to the axle.
Check the condition of your U-Bolts and the required size.
Leaf Comes in size 3D, 4D, 5D, 6D
| Model | Length | Width | Leaf | Capacity | Cap. in Weight |
| ASM3D | 63 cm. | 1-3/4" | 3 | 1750lbs | 793 kg |
| ASM4D | 63 cm. | 1-3/4" | 4 | 2375lbs | 1077 kg |
| ASM5D | 73.2cm. | 1-3/4" | 5 | 2500lbs | 1133 kg |
| ASM6D | 73.2cm | 1-3/4" | 6 | 3000lbs | 1366 kg |
| ASM6D-25 | 64 cm. | 1-3/4" | 6 | 3000lbs | 1366 kg |
| ASM8D | 70 cm. | 1-3/4" | 8 | 4000lbs | 2993 kg |
