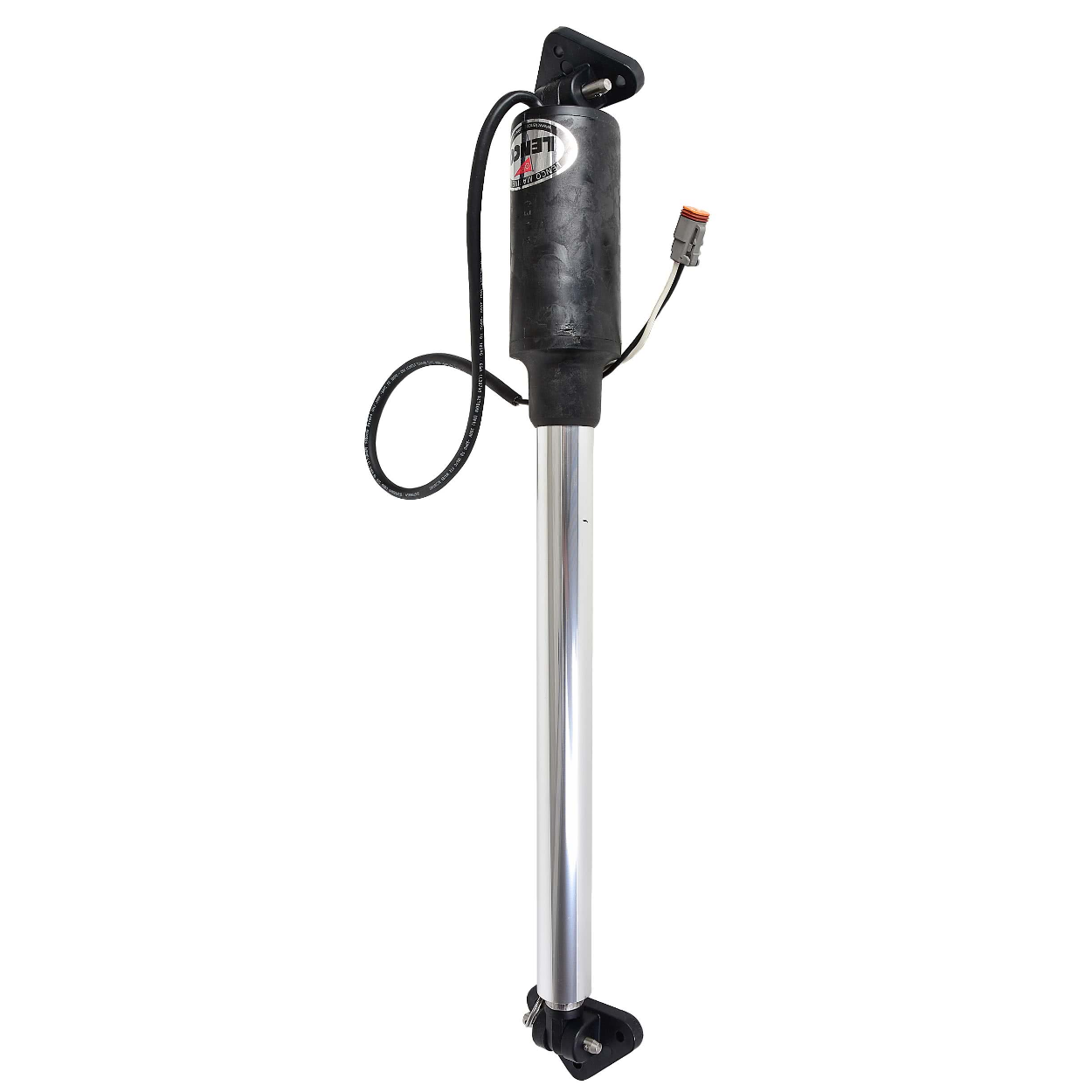

Electric Hatch Lift

12-Volt with 2' (61 cm) leads and Deutsche connectors. Inline motor design delivers over 500 lbs. of force. Includes high impact, corrosion proof mounting brackets and stainless steel pull pins.
Hatch Lift Features :
Clear anodized aluminum tubing

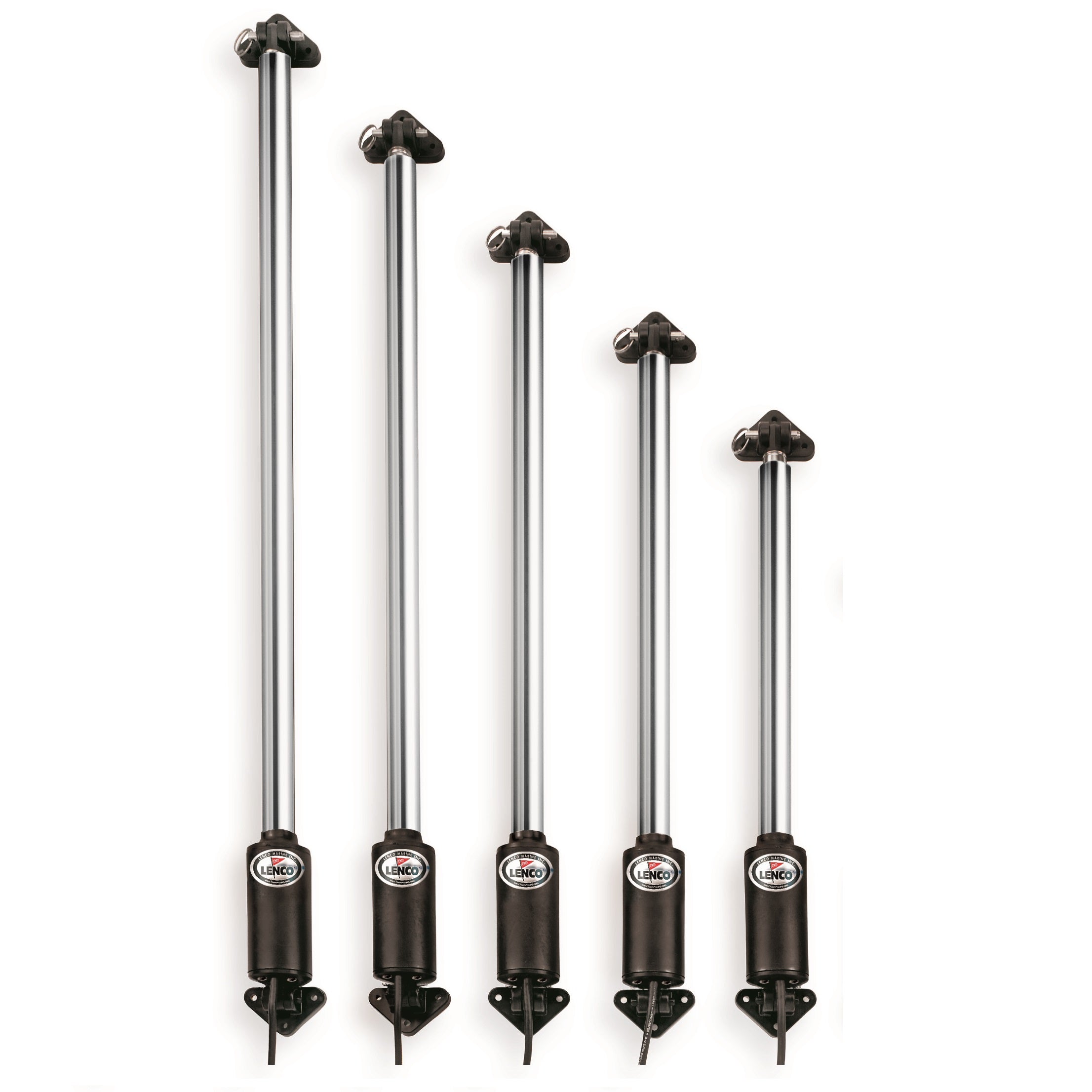

Sizes 4" (10.1 cm) through 30" (76.2) stroke and available in 12-volt.
Complete with 2' (61 cm) lead and Deutsch plug.
Clutchless ball screw design will not drift, never binds and runs in sync on dual lift applications.
Inline motor design delivers over 500 lbs. (226.79 Kg) of force.
Waterproof and made entirely of non-corrosive materials.
Ball screw spins freely when hatch is fully opened or closed eliminating limit switches and burned out motors.

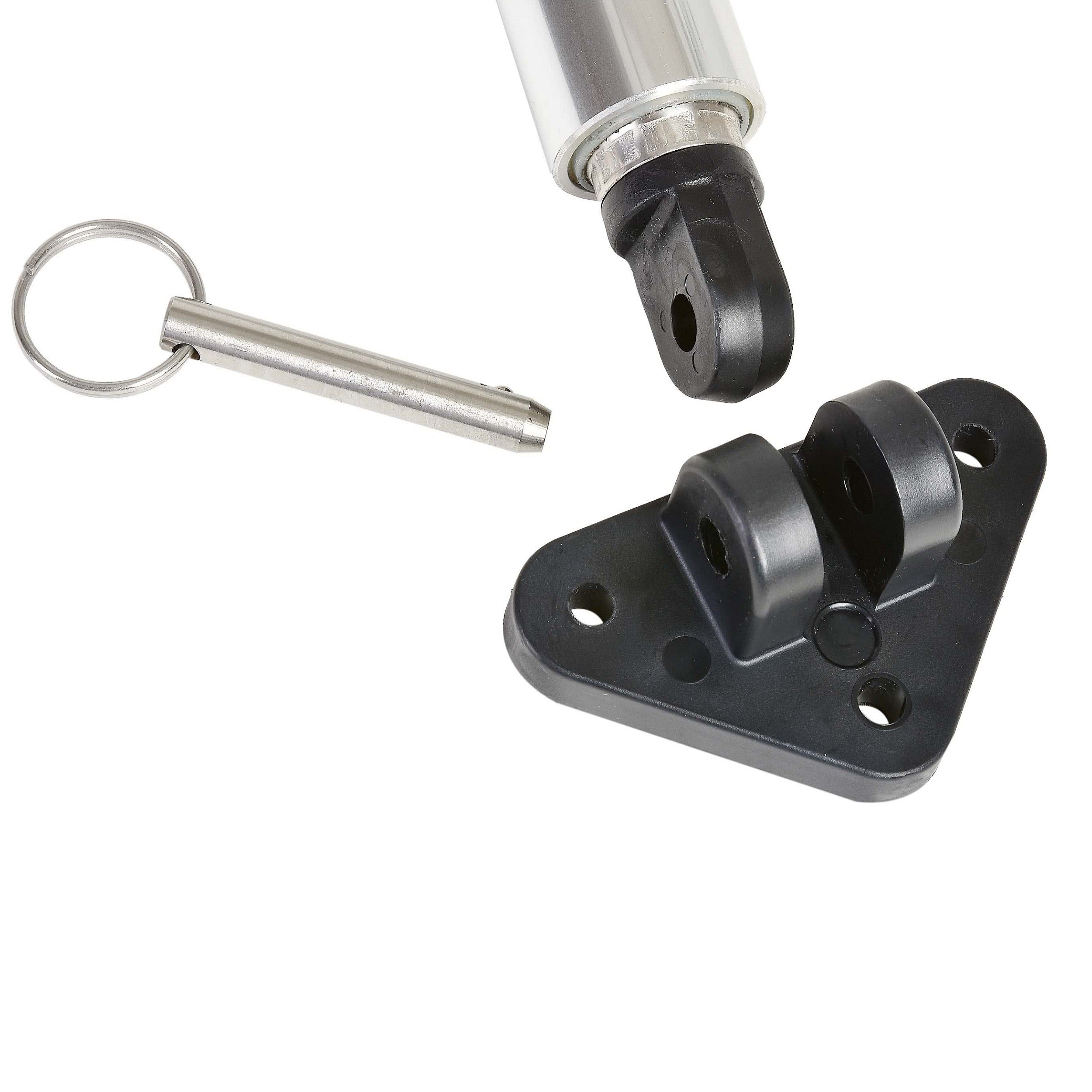

High impact, corrosion proof mounting brackets with stainless steel pull pins.
Powdered metal gears for strength and precision * Stainless steel ram locks in any position.
CE-certified and ABYC compliant.
L.O.A = Length overall, measuring from top bracket to bottom bracket.
Size:

12" (24" Approximate L.O.A. Retracted) to (36" Approximate L.O.A. Extended).      16"  (29" Approximate L.O.A. Retracted) to (45" Approximate L.O.A. Extended).     20"  (33" Approximate L.O.A. Retracted) to (53" Approximate L.O.A. Extended).
