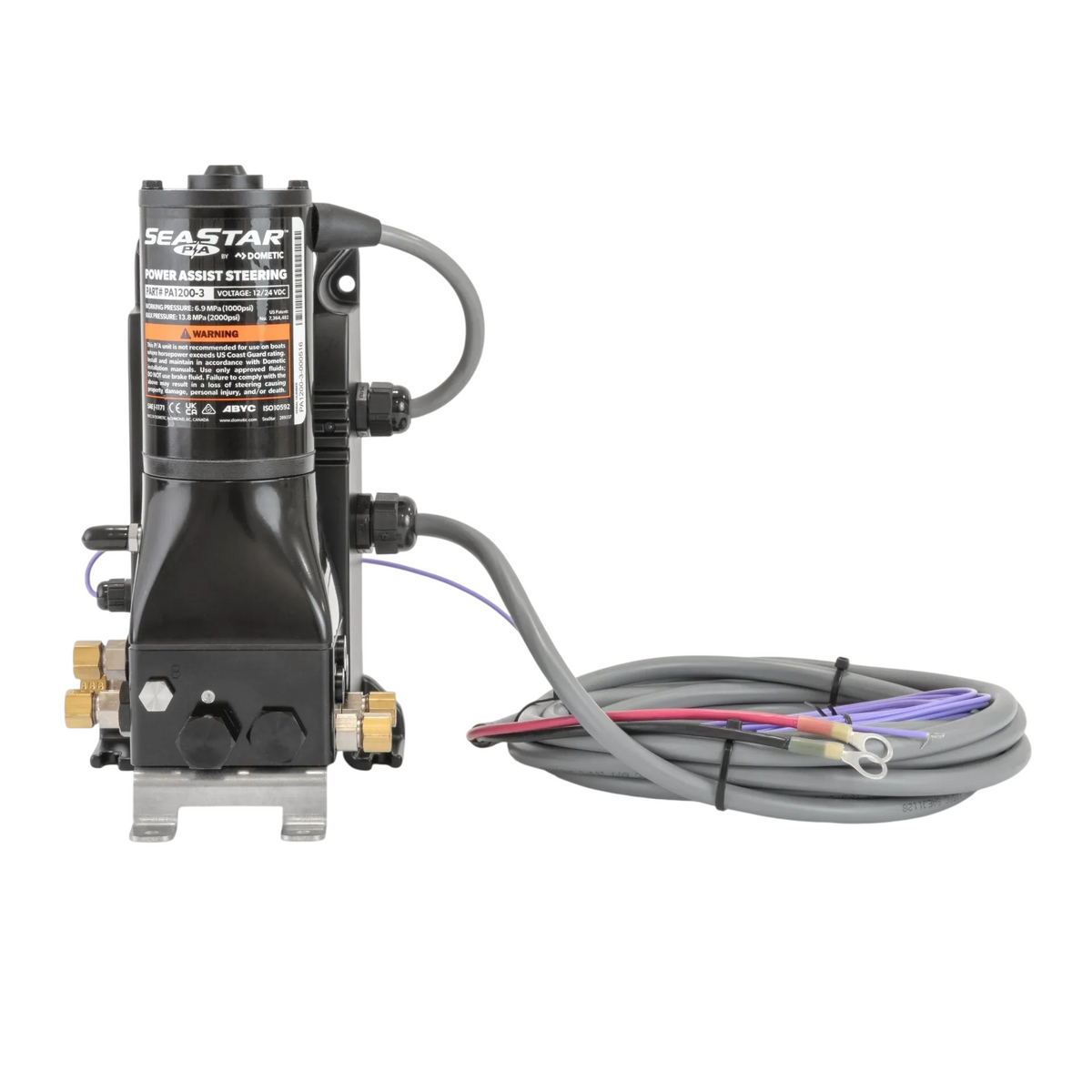

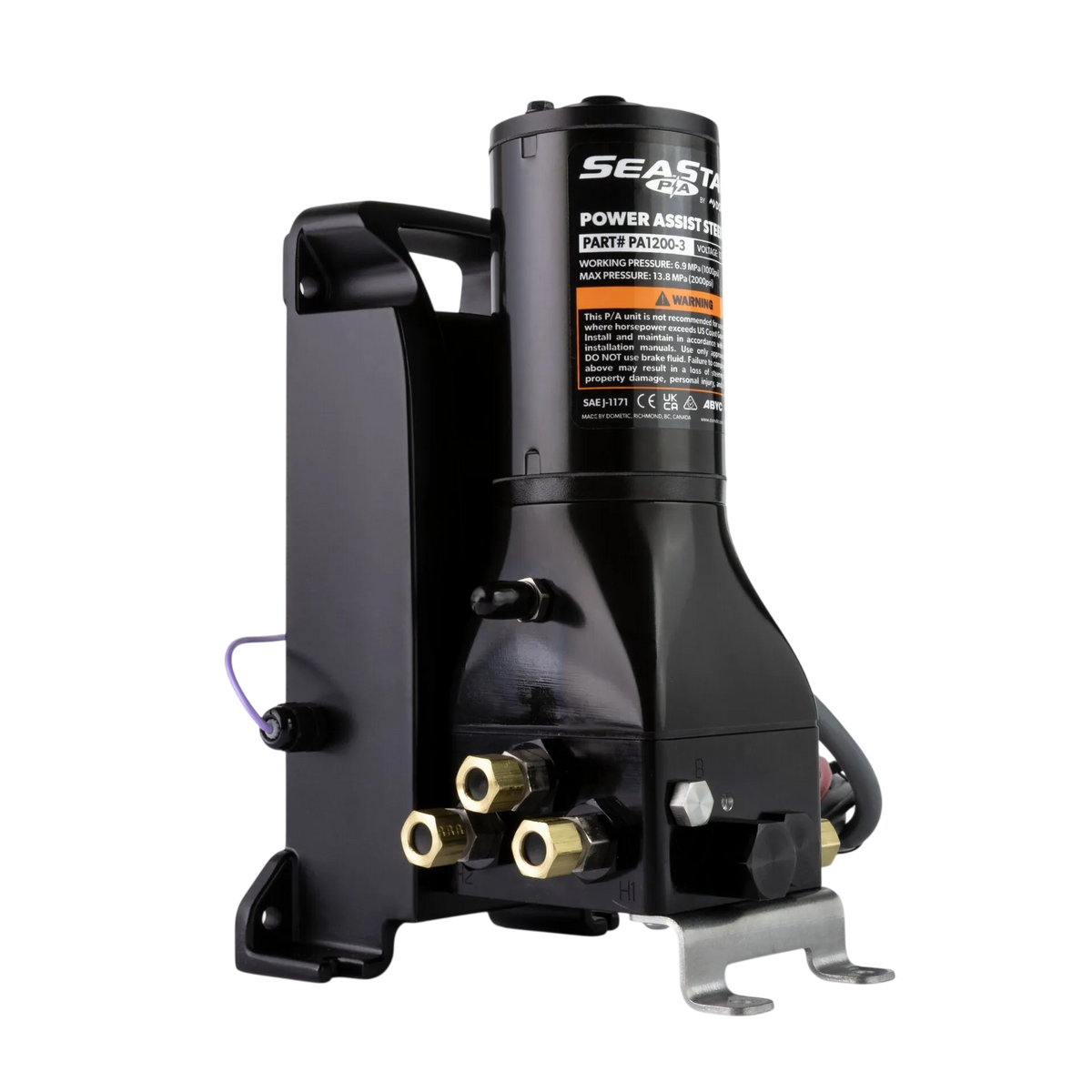

Marine Hydraulic Power Assist 12V/24V
Description
The Dometic SeaStar Power Assist PA1200-3 is an electronically controlled gear pump integrated into the hydraulic steering system between the helm and steering cylinder. It enhances steering by directing fluid from the helm pump through the gear pump to the steering cylinder(s). The helm controls both speed and direction, while the power assist functions as the active component that amplifies steering force. The gear pump’s speed is proportional to the helm’s movement—turning the wheel faster increases pump speed. When not in use, the power assist remains idle, drawing only standby power.
ORB Fittings.
Dramatically reduces steering effort in heavy or high torque applications.
Easy installation, suitable for wall or floor mount.
Compatible with Dometic SeaStar Power Purge system.
Wiring harness included.
Operating voltage : 12/24V (automatically detected).
Power harness length : 15’ (4.5m).
Power harness wire gauge : 10 AWG.
Working pressure : 1000 psi (6.9 MPa).
Maximum pressure : 2000 psi (13.8 MPa).
Relief pressure : 2000psi (13.8 MPa).
Maximum pump flow rate : 240 in3/min (3930 cc/min).
Average current draw : ~3A.
Maximum current draw : 12V (50 A) / 24V ( 25 A ).
Internal fuse rating : 40A x2 (80A).
Ignition wire maximum current draw : 1A.
Weight (w/o harness) : 11.5 lb (5.2 kg).
Dimensions (w/o harness) H x W x D : 11.1” x 6.2” x 6.5” (28 cm x 15.7 cm x 16.5 cm).
Ignition harness length : 25’ (7.6m).
Power harness length : 15’ (4.5m).
Power harness wire gauge : 10 AWG.
Working pressure : 1000 psi (6.9 MPa).
Maximum pressure : 2000 psi (13.8 MPa).
Relief pressure : 2000psi (13.8 MPa).
Maximum pump flow rate : 240 in3/min (3930 cc/min).
Average current draw : ~3A.
Maximum current draw : 12V (50 A) / 24V ( 25 A ).
Internal fuse rating : 40A x2 (80A).
Ignition wire maximum current draw : 1A.
Weight (w/o harness) : 11.5 lb (5.2 kg).
Dimensions (w/o harness) H x W x D : 11.1” x 6.2” x 6.5” (28 cm x 15.7 cm x 16.5 cm).
Ignition harness length : 25’ (7.6m).
ABYC, CE, NMMA, ISO 10592 Approved.
Marine Hydraulic Power Assist 12V/24V
Sale price725.000 KD
Regular price (/)
