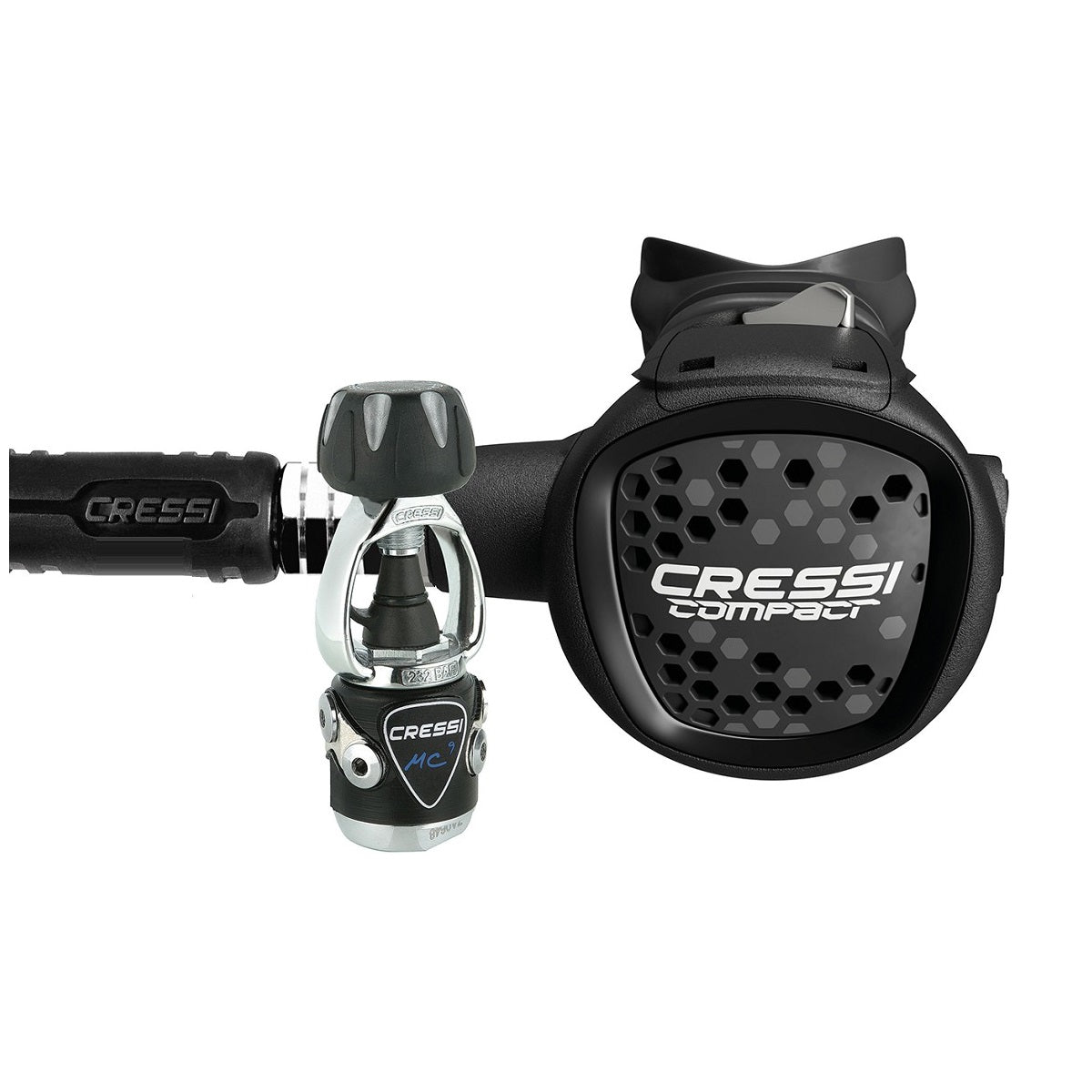

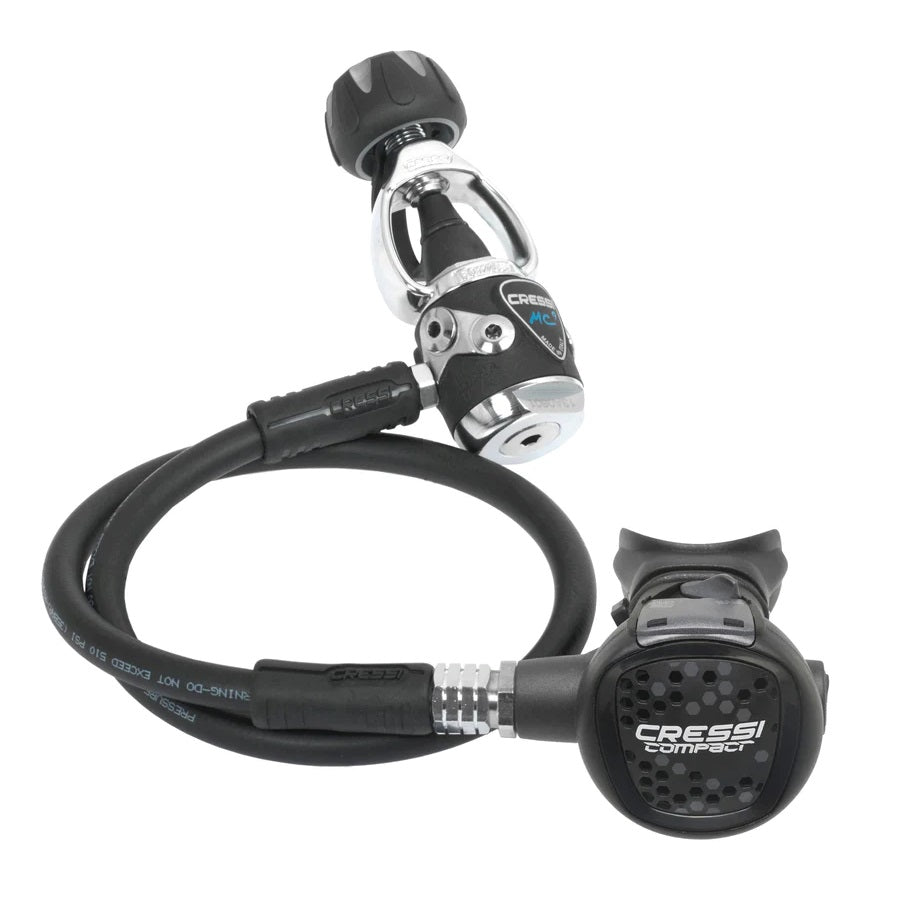

Mc9 + Compact Regulator INT
Description
This premiere travel regulator packs maximum performance into minimum space.
A true featherweight second stage, the Compact is built from lightweight techno-polymers to eliminate jaw fatigue.
Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch
for managing freeflow and maximizing performance at depth.
TECHNICAL FEATURES 1ST STAGE :
- Balanced diaphragm (seal chamber for MC9SC).
- 2 outlets HP 7/16 UNF.
- 4 outlets MP 3/8 UNF.
- Service pressure: 300 bar (4350 psi) DIN version.
232 bar (3365 psi) Yoke version.
- Calibration pressure: 10 Bar.
- Brass body Electroless Nickel plated.
- High capacity conical filter electroless nickel plated.
- Aisi 316 removable nozzle.
- Hyper-balancing.
- Anti-pressure drop pneumatic spring.
- Setting spring: stainless steel with micropeening treatment.
- Replaceable cylinder with anti-friction.
and anti-corrosion properties.
- Elastomer protector.
- Flow rate: 4500 l/min.
- Yoke version weight: 590 gr.
- Din version weight: 450 gr.
TECHNICAL FEATURES 2ND STAGE :
- Downstream system.
- Adjustable venturi effect.
- Patented antifriction lever.
- Big purge button.
- Anti-scratch surface.
- Bayonet-type cap holder with security lock.
- Removable exhaust tee.
- Weight without hose: 135 gr.
COMBINATION PERFORMANCE :
- Average Cracking effort 6 mbar.
- Average breathing effort 1 J/l.
A true featherweight second stage, the Compact is built from lightweight techno-polymers to eliminate jaw fatigue.
Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch
for managing freeflow and maximizing performance at depth.
TECHNICAL FEATURES 1ST STAGE :
- Balanced diaphragm (seal chamber for MC9SC).
- 2 outlets HP 7/16 UNF.
- 4 outlets MP 3/8 UNF.
- Service pressure: 300 bar (4350 psi) DIN version.
232 bar (3365 psi) Yoke version.
- Calibration pressure: 10 Bar.
- Brass body Electroless Nickel plated.
- High capacity conical filter electroless nickel plated.
- Aisi 316 removable nozzle.
- Hyper-balancing.
- Anti-pressure drop pneumatic spring.
- Setting spring: stainless steel with micropeening treatment.
- Replaceable cylinder with anti-friction.
and anti-corrosion properties.
- Elastomer protector.
- Flow rate: 4500 l/min.
- Yoke version weight: 590 gr.
- Din version weight: 450 gr.
TECHNICAL FEATURES 2ND STAGE :
- Downstream system.
- Adjustable venturi effect.
- Patented antifriction lever.
- Big purge button.
- Anti-scratch surface.
- Bayonet-type cap holder with security lock.
- Removable exhaust tee.
- Weight without hose: 135 gr.
COMBINATION PERFORMANCE :
- Average Cracking effort 6 mbar.
- Average breathing effort 1 J/l.
Mc9 + Compact Regulator INT
Sale price107.000 KD
