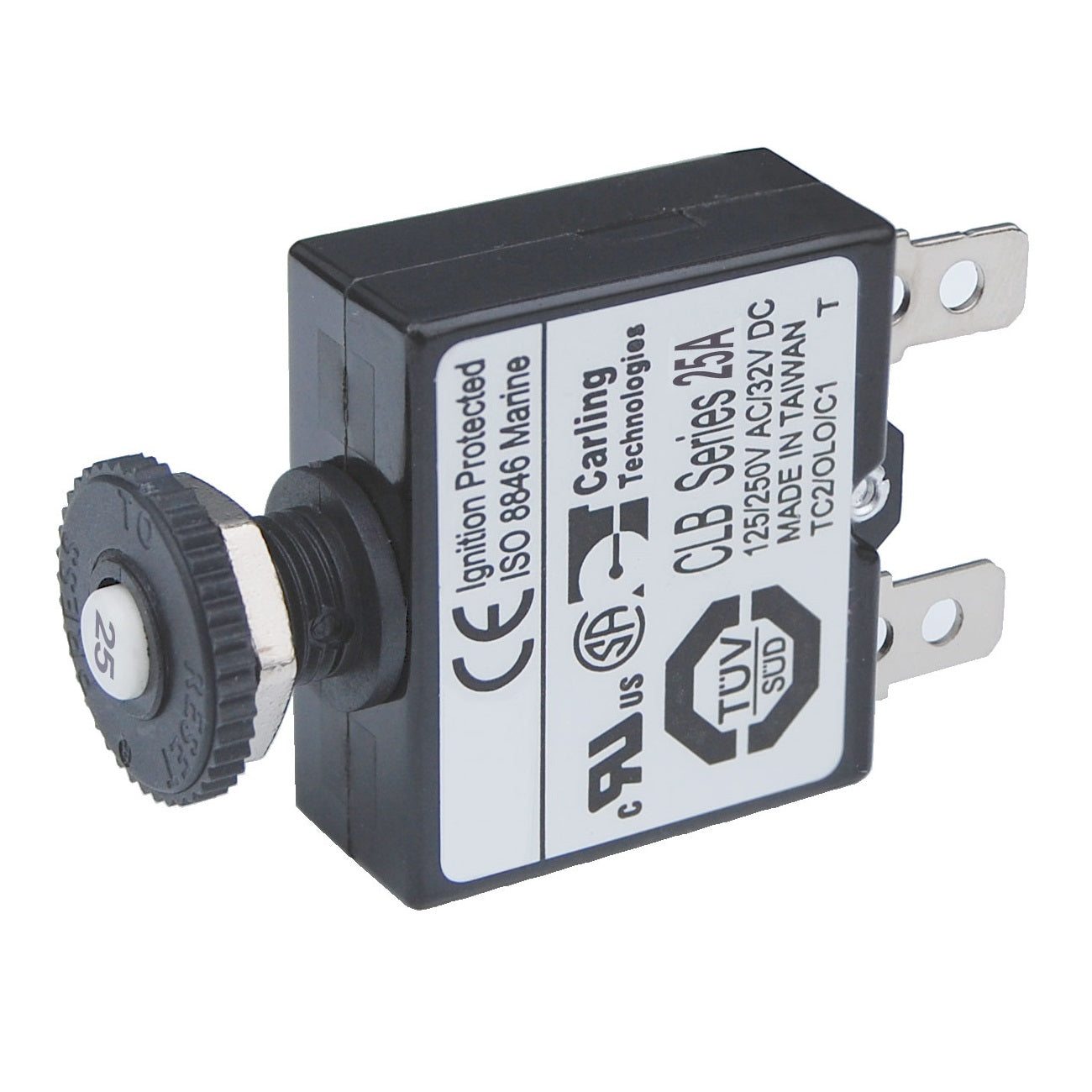

Push Button Reset Circuit Breaker
Description
Branch circuit breakers (can also be used for 24-hour circuit protection).
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels.
Compact design enables high density circuit protection configurations.
Push-to-reset operation.
“Trip Free” design cannot be held “ON” during fault current condition.
Ignition protected - Safe for installation aboard gasoline powered boats.
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking.
Amperage : 10 A, 15 A, 20 A, 25 A,.
Maximum Voltage : 32V DC.
Mounting : Panel Mount 3/8-27 UNS.
Circuit Breaker Type : Thermal trip, manual push-button reset only.
Terminal Type : 1/4 Male Quick Connect.
Interrupt Capacity : 3000A @ 14.7V, 2500A @ 28V.
Minimum Operating Temperature : -10° C.
Maximum Operating Temperature : 60° C.
Push Button Reset Circuit Breaker
Sale price3.500 KD
