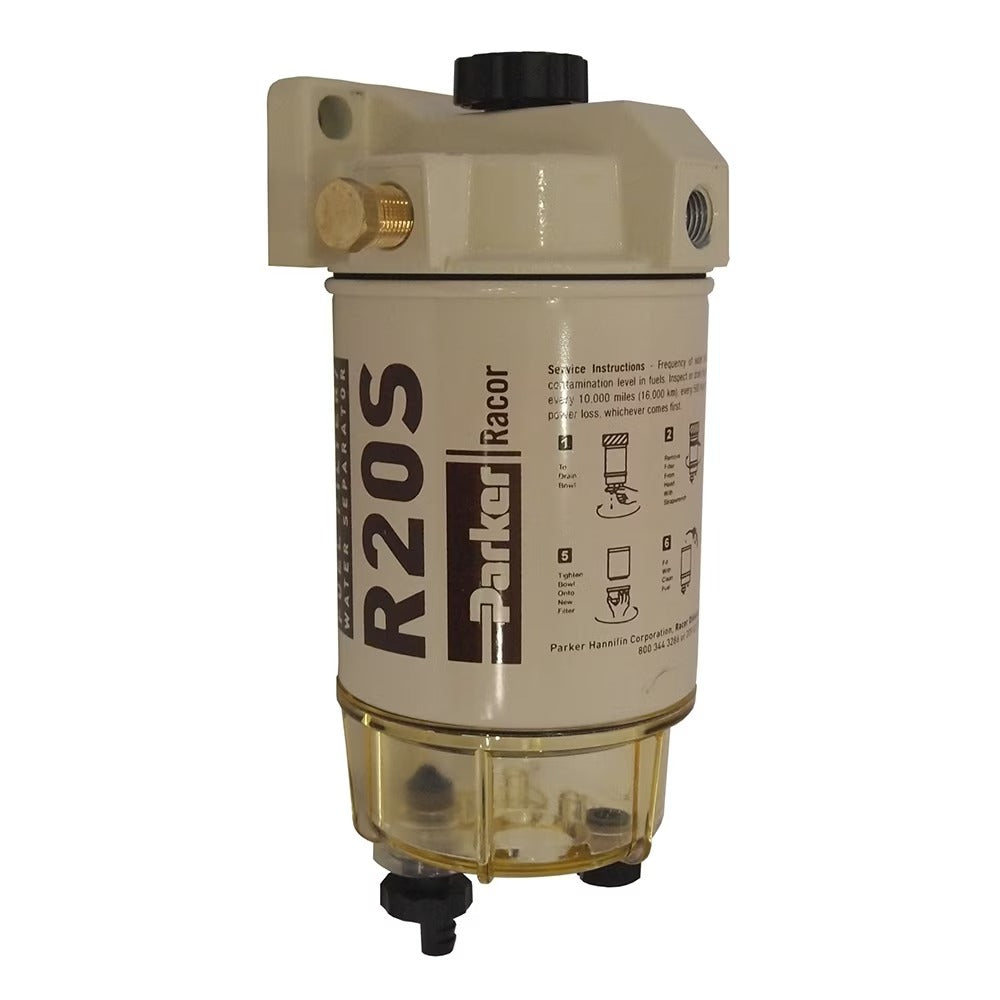

Racor 230R2 Diesel Filter / Water Sperator
Racor 200 Series 30 GPH Low Flow Diesel Fuel Filter/Water Separator 230 Filter Assembly - 2 Micron. It come standard with an integral priming pump and a new see-thru contaminant bowl which can operate in applications up to 30 PSI.
Die-cast aluminum unitized head ports. Mounting holds spaced at 1.4" (35.6 mm), for 1/4" bolt. 2 piece powder-coated aluminum construction.
Filters gasoline, diesel, and gasoline/oil blended fuels. Compact design.
Heavy duty construction. Easy to service.
|Number of Ports||3|
|Port Size||1/4" - 18 NPTF (SAE J467)|
|Max Operating Pressure||30 PSI|
|Integral Primer Pump||Yes|
|Ambient Temp Range||-40°F to 255°F|
