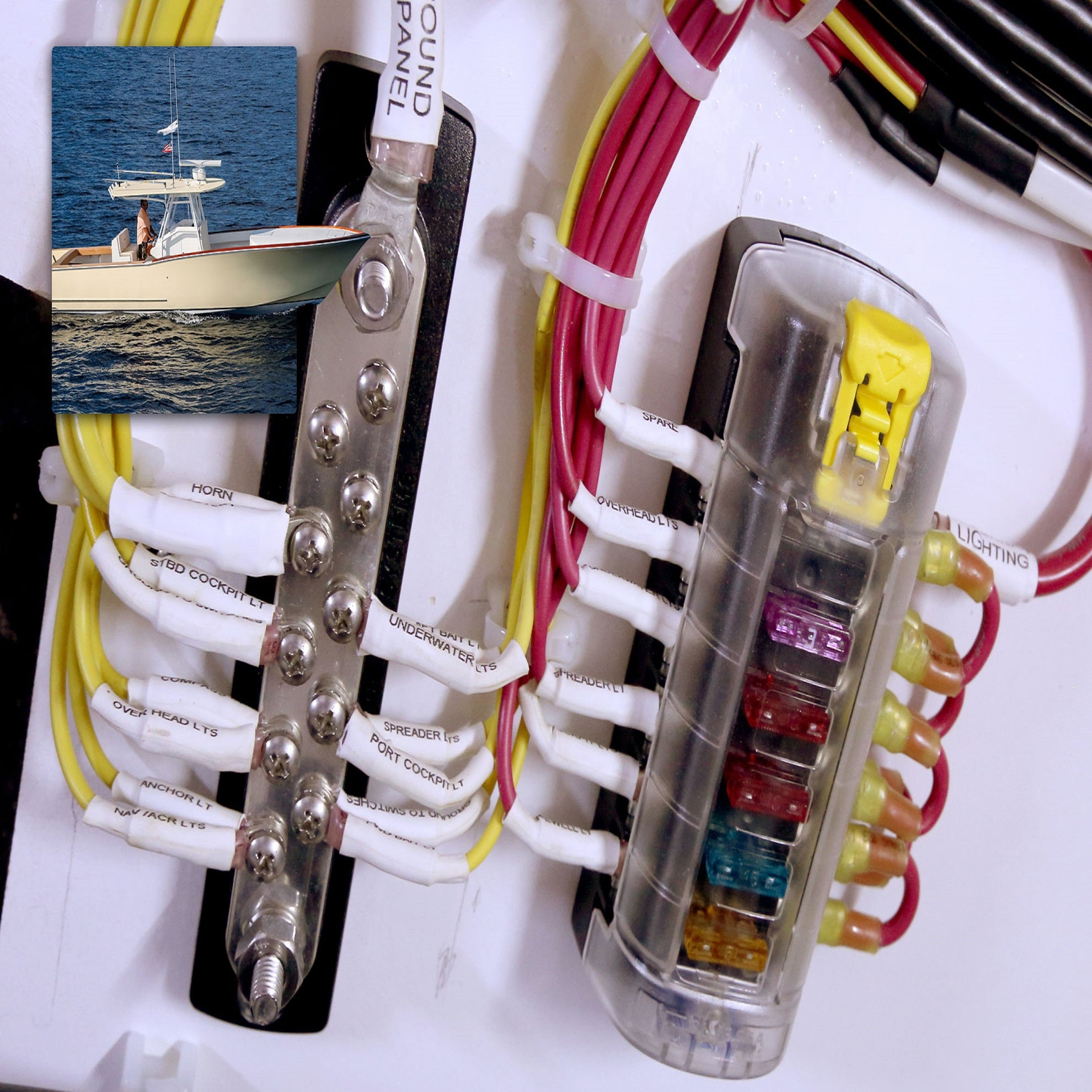

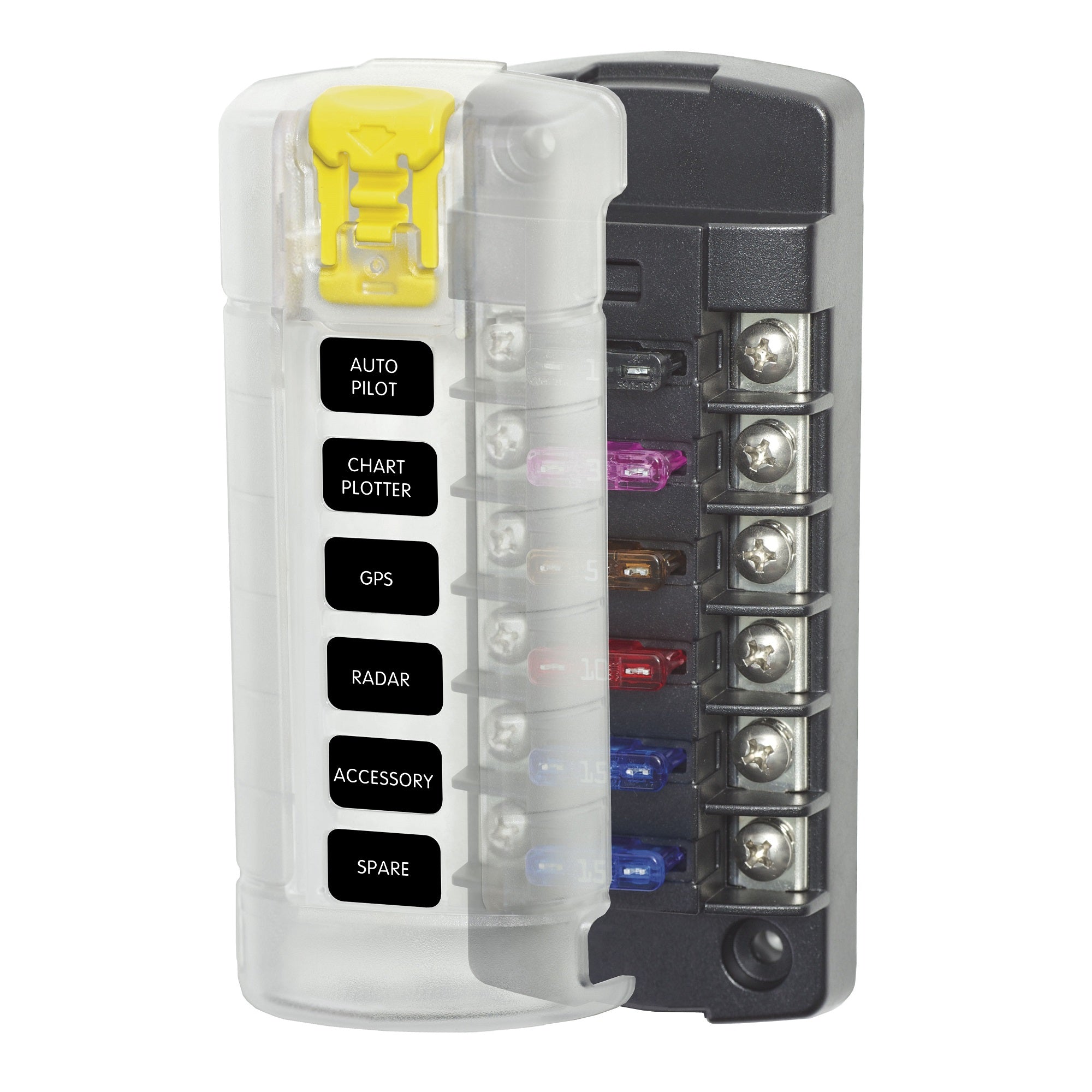

ST Blade Fuse Block - 6 Circuits
Description
ST Blade Fuse Block - 6 Independent Circuits with Cover.
Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
Clear insulating cover with label recesses accepts Small Format Labels
Spare fuse holder in cover
Accepts ring or snap fork type terminals
Includes two terminal block jumpers
Circuits : 6
Maximum Amperage : 30A per circuit , 40A per jumped circuit group
Maximum Voltage : 32V DC
Mounting : #8 Screw (M4) Screw
Terminal Torque : 18 in-lb (2.03 Nm) Screw
Terminal Type : #8-32 with Captive Star Lockwasher
Weight : 0.35lb (0.16 kg)
Corrosion resistant, tin-plated copper fuse clips reduce heat and improve the efficiency of the electrical system
Clear insulating cover with label recesses accepts Small Format Labels
Spare fuse holder in cover
Accepts ring or snap fork type terminals
Includes two terminal block jumpers
Circuits : 6
Maximum Amperage : 30A per circuit , 40A per jumped circuit group
Maximum Voltage : 32V DC
Mounting : #8 Screw (M4) Screw
Terminal Torque : 18 in-lb (2.03 Nm) Screw
Terminal Type : #8-32 with Captive Star Lockwasher
Weight : 0.35lb (0.16 kg)
ST Blade Fuse Block - 6 Circuits
Sale price15.500 KD
