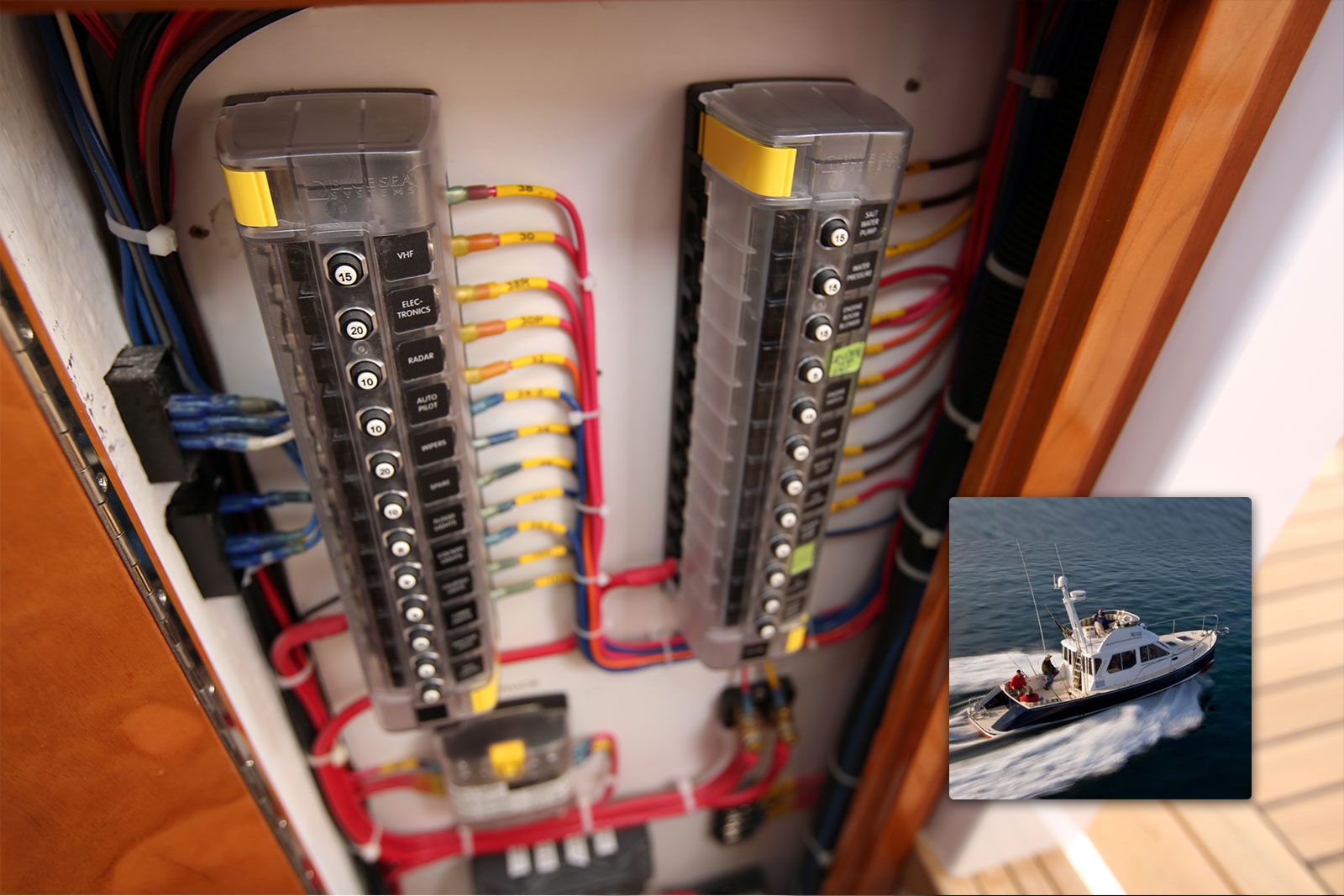

ST CLB Circuit Breaker Block - 12 Circuit

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Quick connect clips allow circuit breakers to snap easily into place.
Tin-plated copper busses and screw terminals.
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements.
Easy to open clip on cover.
Breakouts allow wire access in two directions.
Accepts ring terminals.
Optional push button waterproof boots or dress nuts can be installed over cover.
Accepts square labels.
Circuits : 12.
Maximum Amperage :   32A per block, 40A per circuit.
Maximum Voltage :   32V DC.
Mounting :   # 8 Screw (M4) or #8 Nut..
Source :   Independent Source.
Mounting Centers :   10.13" (257.3 mm)
Screw Terminal Type :   #8-32 Screws with Captive Star Lock Washer.
Height :  11.19" (284.23 mm)
Weight :   1.50 lb (0.68 kg)
