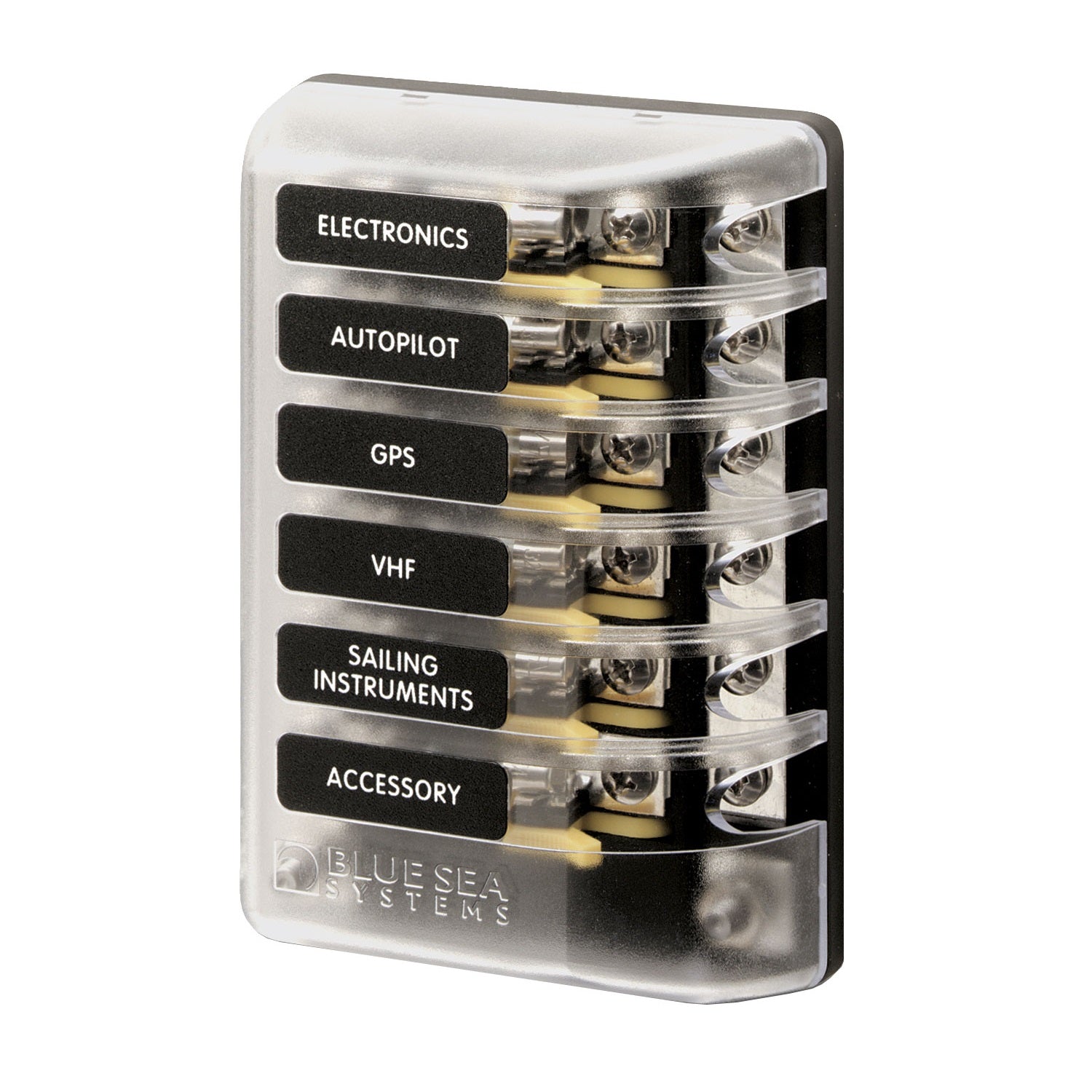

ST Glass 6 Circuit Fuse Block
Description
ST Glass 6 Circuit Fuse Block with Negative Bus and Cover. Innovative design allows for labeling, spare fuse storage, and easy fuse removal.
Innovative design allows for labeling, spare fuse storage, and easy fuse removal.
Clear insulating cover with label recesses for accept Large Format Labels.
Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses.
Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit.
Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses.
Maximum Amperage : 100A per block, 30A per circuit.
Maximum Voltage : 32V DC.
Mounting : #8 Screw (M4).
Negative Bus : Yes.
Base Material : Reinforced Polycarbonate.
Cover Material : Polycarbonate.
Screw Terminal Type : #8-32 with Captive Star Lockwasher.
Weight : 0.58lb (0.26 kg).
Innovative design allows for labeling, spare fuse storage, and easy fuse removal.
Clear insulating cover with label recesses for accept Large Format Labels.
Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses.
Tin-plated copper buses and Phosphor Bronze fuse clips give 30 Ampere rating per circuit.
Accepts AGC (Fast Acting), MDL (Time-Delay) and all other 3AG Glass Fuses.
Maximum Amperage : 100A per block, 30A per circuit.
Maximum Voltage : 32V DC.
Mounting : #8 Screw (M4).
Negative Bus : Yes.
Base Material : Reinforced Polycarbonate.
Cover Material : Polycarbonate.
Screw Terminal Type : #8-32 with Captive Star Lockwasher.
Weight : 0.58lb (0.26 kg).
ST Glass 6 Circuit Fuse Block
Sale price18.000 KD
