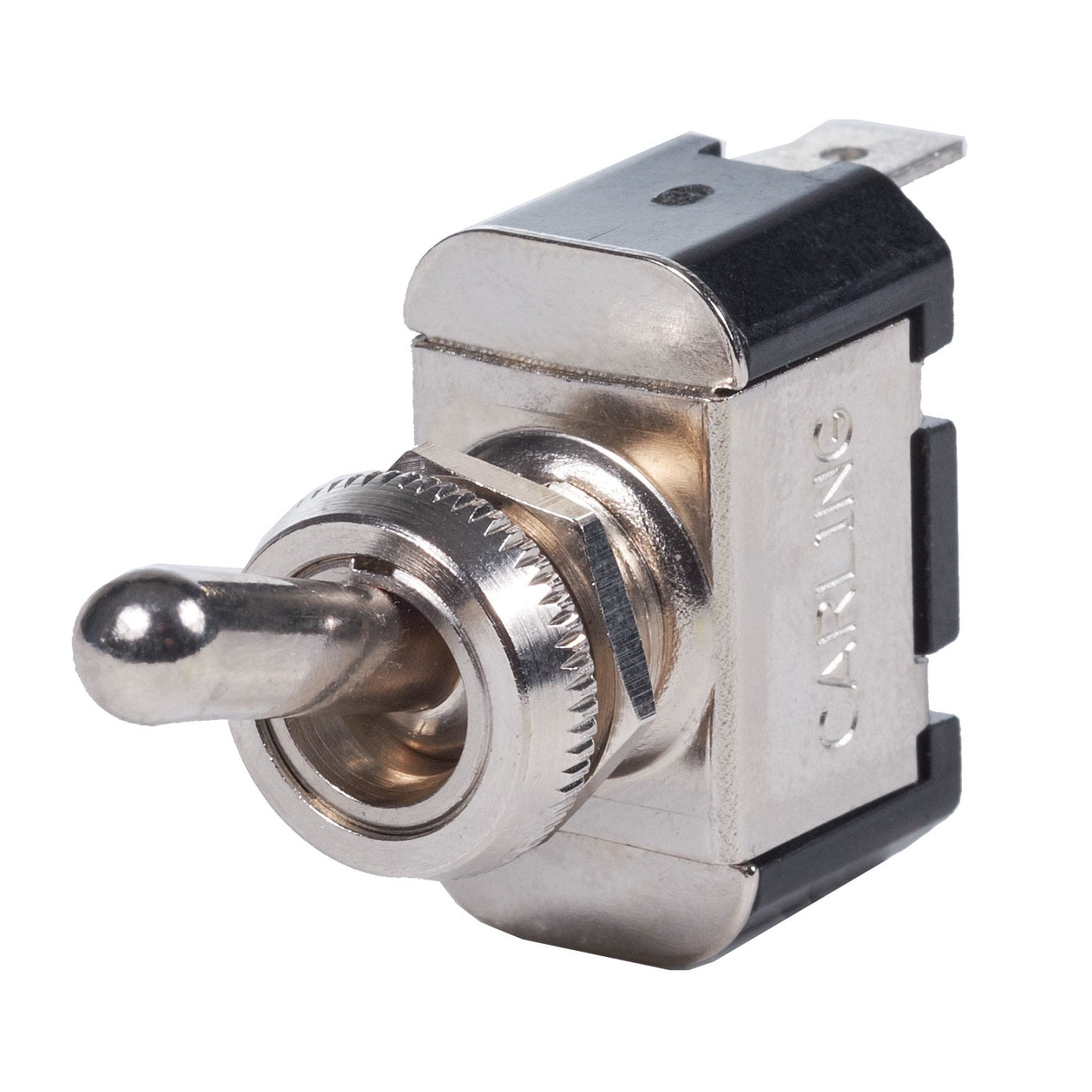

Toggle Switch SPST - On-Off
Description
Weather Deck® Toggle Switch SPST On-Off
Specially manufactured by Carlin Technologies for use in Blue Sea Systems' WeatherDeck® Panels
When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
Nickel-plated brass and phenolic non-corrosive construction
Action : On-Off
Pole / Throw : SPST
Poles : 1
Common Applications : lights
Maximum Amperage : 15A @ 125V AC , 15A @ 12V DC , 10A @ 250V AC

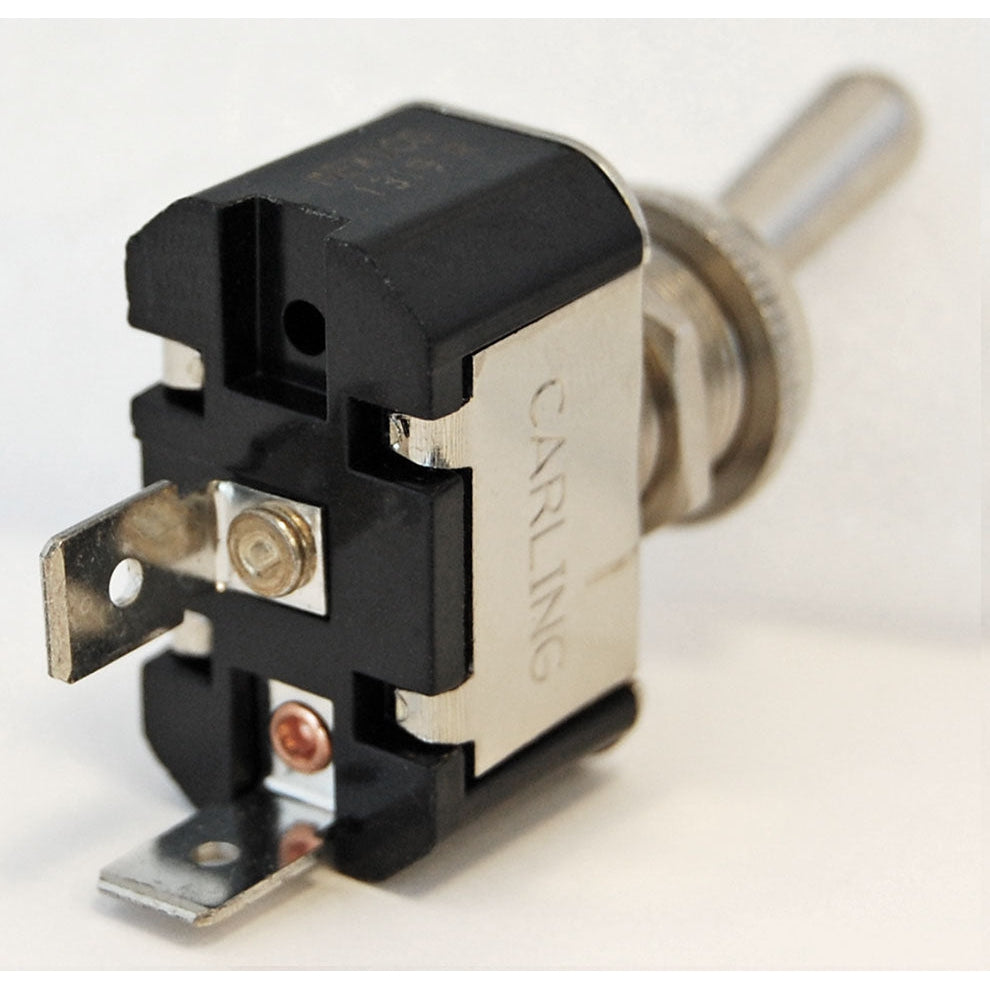

Terminal Type : Quick Connect Tab
Number of Terminals : 2
Terminal Size : 0.25in (6.35 mm)
Weight : 0.10lb (0.05 kg)
Specially manufactured by Carlin Technologies for use in Blue Sea Systems' WeatherDeck® Panels
When mounted with a WeatherDeck® Toggle Switch Boot Rated IP67-temporary immersion for 30 minutes
Nickel-plated brass and phenolic non-corrosive construction
Action : On-Off
Pole / Throw : SPST
Poles : 1
Common Applications : lights
Maximum Amperage : 15A @ 125V AC , 15A @ 12V DC , 10A @ 250V AC
Terminal Type : Quick Connect Tab
Number of Terminals : 2
Terminal Size : 0.25in (6.35 mm)
Weight : 0.10lb (0.05 kg)
Toggle Switch SPST - On-Off
Sale price2.750 KD
